Bungalow House Plan - 3 Bedrooms, 3 Bath, 2026 Sq Ft Plan 17-851

House Plans > Bungalow Style > Plan 17-851

3 Bedroom , 3 Bath Bungalow House Plan #17-851

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 3 Bath Bungalow House Plan #17-851

Key Specs:
  • img 2026 Sq. Ft.
  • img 3 Bedrooms
  • img 3 Full Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

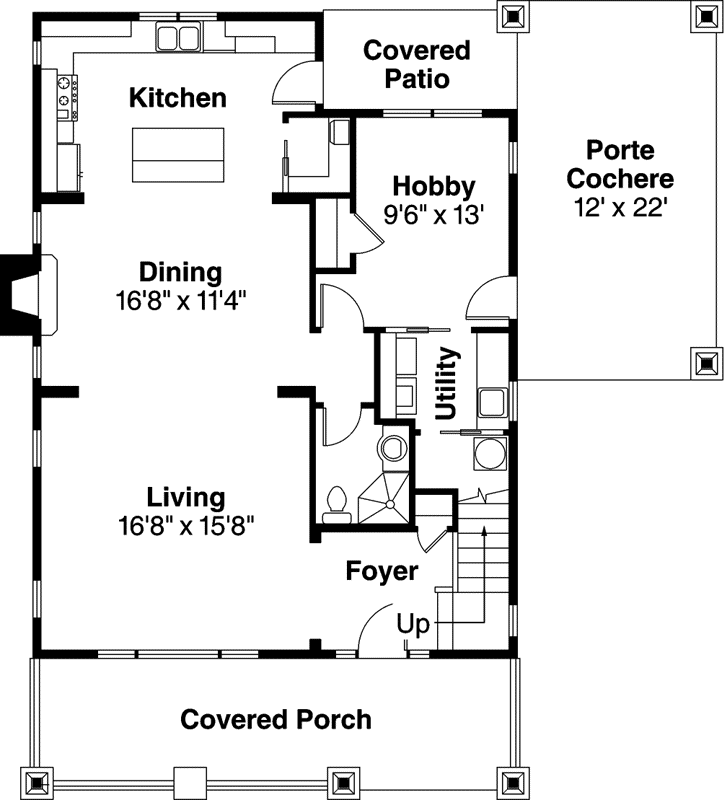

    Main Floor Plan: 17-851
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

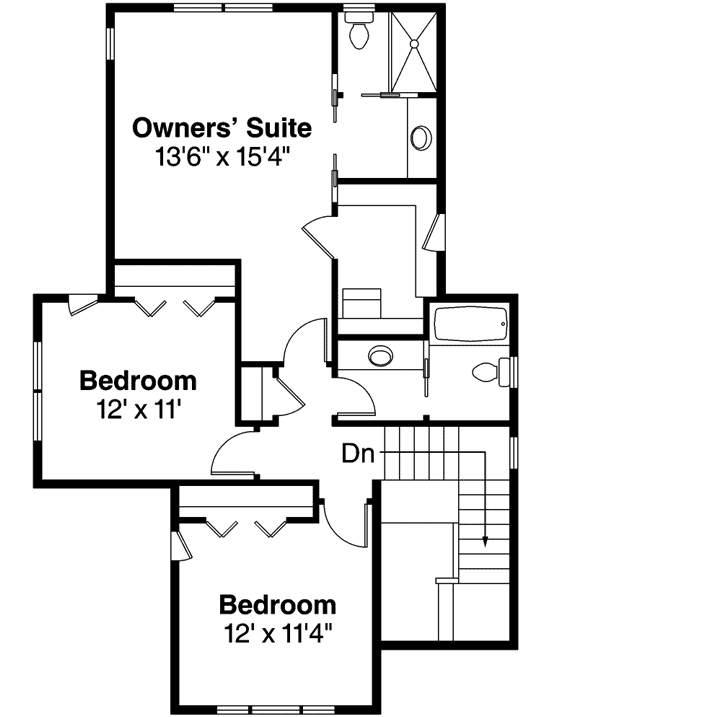

    Upper/Second Floor Plan: 17-851
  • Plan Options

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

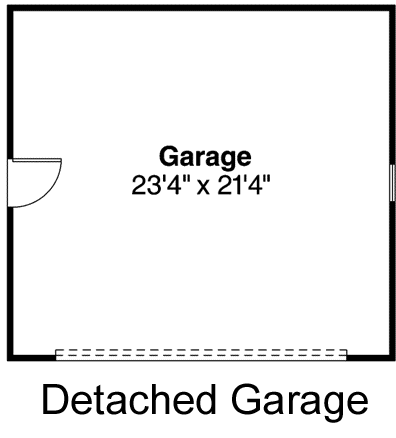

    Bungalow Style House Plans Plan: 17-851
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 17-851

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Its Craftsman-style front dormer handrailed front porch tapered columns and porte cochere all add to the nostalgic charm of the Blue River. This two-story Craftsman bungalow would be equally at home in a suburban neighborhood or a retreat setting. It's easy to imagine relaxing on the porch in summer sipping iced drinks chatting with friends or waving to neighbors passing by. Soft light spills into the vaulted foyer through sidelights and glass near the top of the Craftsman door. The stairway that angles up the right wall leads to three bedrooms and two bathrooms. Straight ahead is a coat closet which makes good use of the under-stair space. Family living areas fill the main floor. A wide opening on the left side of the foyer feeds into a large living room with a wide triplex of windows facing the porch and two standard-sized windows arrayed along the other outside wall. Slender wall segments mark the juncture of the living room and dining room. The dining area is also naturally bright due to matched windows that flank its gas fireplace. An opening on the opposite wall provides access to a convenient powder room and a good-sized hobby room or home office windowed on two sides. A pocket door in the hobby room opens into a utility room fully outfitted with a utility tub and a wide folding counter. Another door leads out to the porte cochere. A second set of slender wall segments marks where the Blue River's dining room segues into the C-shaped kitchen. A conversation bar rims one side of its central work island. The roomy and partially recessed walk-in pantry is next to a door leading out onto a cozy covered patio.

This floor plan is found in our Bungalow house plans section

Full Specs and Features

Total Living Area

Main floor: 1138

Upper floor: 888

Total Finished Sq. Ft.: 2026

Beds/Baths

Bedrooms: 3

Full Baths: 3

Garage

Garage: 528

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 44' 0"

Depth: 48' 0"

Height: 27' 7"

Roof slope

8:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Upper)

Foundation Options

  • Basement $540
  • Crawlspace Standard With Plan
  • Slab $415

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Monster Material List
Optional Add-Ons

Subtotal: $0
