0 Bedroom , 0 Bath Bungalow House Plan #5-1017

SHARE ON
  • 5-1017e.webp
Reverse
  • 5-1017e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Large garage with space for a motorhome and easy to enlarge if more depth was required for the motorhome.
"This designer does not include electrical layouts with their designs."
"Allow up to 15 business days for delivery."

0 Bedroom , 0 Bath Bungalow House Plan #5-1017

Key Specs:
  • img 2466 Sq. Ft.
  • img 2 Stories
  • img 4 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

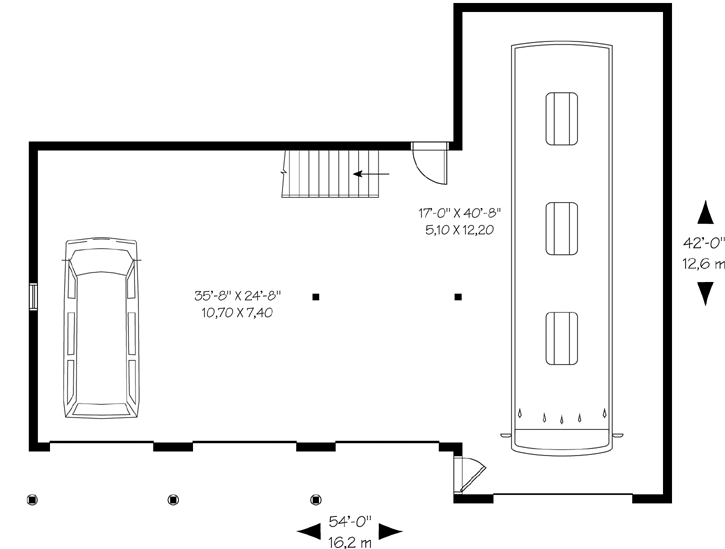

    Main Floor Plan: 5-1017

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

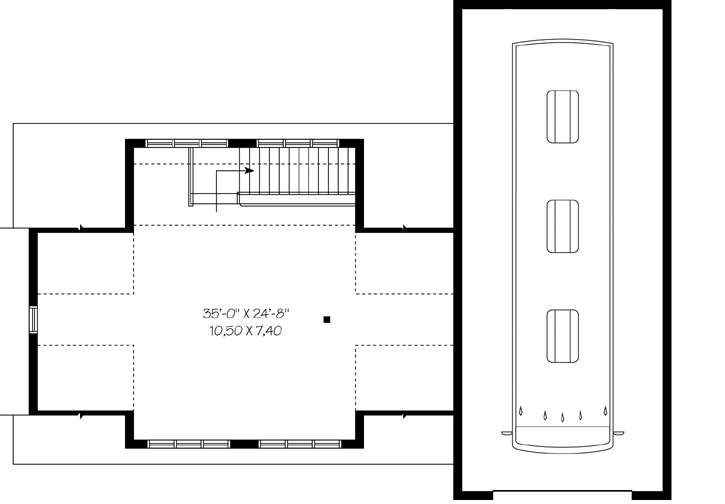

    Upper/Second Floor Plan: 5-1017
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 5-1017

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

1st level Quadruple garage including a space for a motorhome. 2nd level Unfinished space to be converted according to owner's needs.

This floor plan is found in our Bungalow house plans section

Full Specs and Features

Total Living Area

Main floor: 1697

Upper floor: 769

Bonus: 769

Total Finished Sq. Ft.: 2466
Garage

Garage: 1697

Garage Stalls: 4
Levels

2 stories
Dimension

Width: 54' 0"

Depth: 42' 0"

Height: 22' 7"
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Slab Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • PDF (recommended) $820 $656

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF + 3 $935 $748

    This is the package you would want to buy if you are not making modifications to the drawings and also want 3 printed sets. This includes a single license to build.

  • CAD $1320 $1056

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Slab Standard With Plan
