Bungalow House Plan - 5 Bedrooms, 4 Bath, 5692 Sq Ft Plan 106-515

House Plans > Bungalow Style > Plan 106-515

5 Bedroom , 4 Bath Bungalow House Plan #106-515

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

5 Bedroom , 4 Bath Bungalow House Plan #106-515

Key Specs:

5692 Sq. Ft.
5 Bedrooms
4-1/2 Baths
2 Stories
3 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

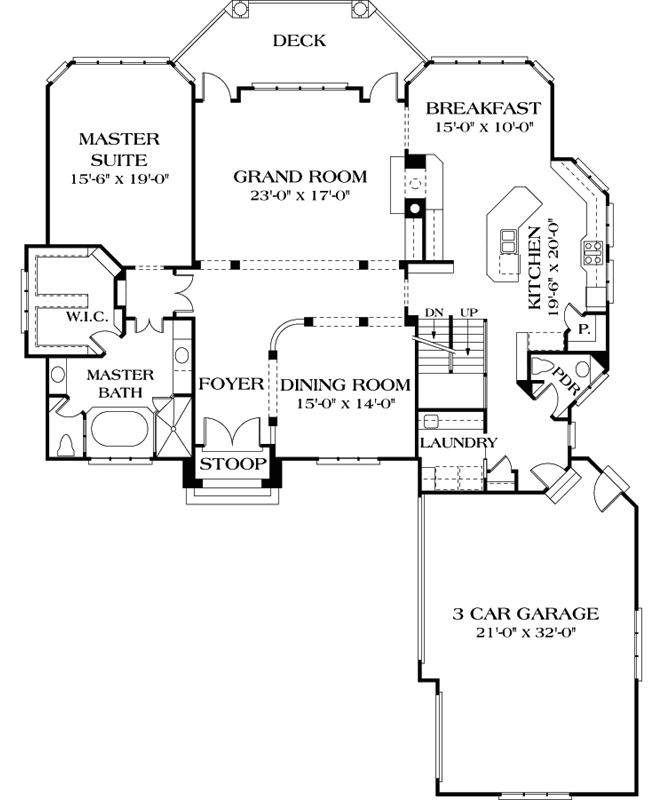

Main Floor

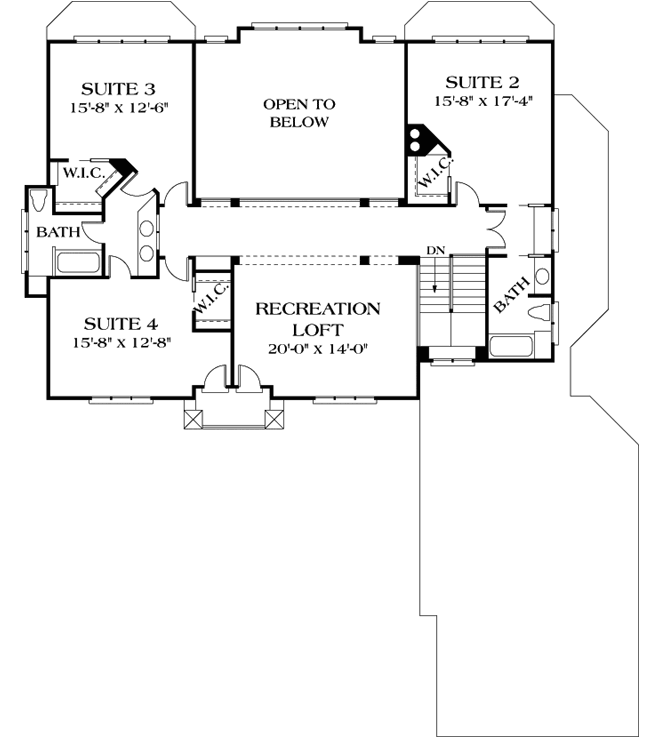

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

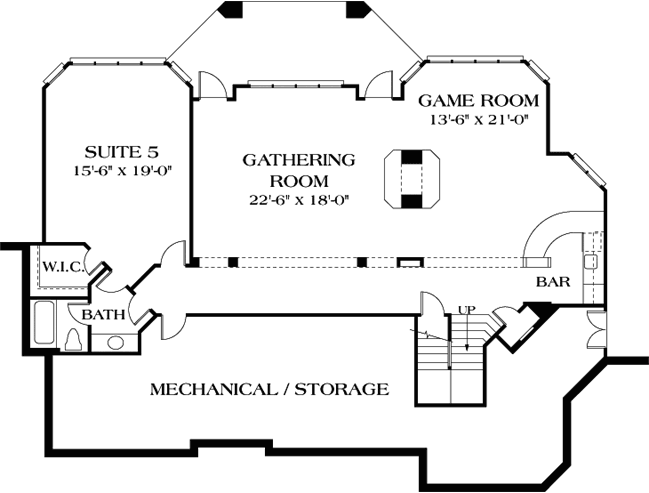

Lower Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Designed for sloping lots, this magnificent home offers windows that overlook the rear grounds from three separate levels. The foyer is enriched by decorative columns and an abundance of windows. Upstairs, three suites and a loft feature opportunities to survey the surrounding landscape.

This floor plan is found in our Bungalow house plans section

Full Specs and Features

Total Living Area	Main floor: 2450 Upper floor: 1674	Basement: 1568 Total Finished Sq. Ft.: 5692
Beds/Baths	Bedrooms: 5 Full Baths: 4	Half Baths: 1
Garage	Garage: 778 Garage Stalls: 3
Levels	2 stories
Dimension	Width: 65' 10" Depth: 85' 2"
Walls (exterior)	2"x4"
Ceiling heights	10' (Main) 9' (Upper)

Foundation Options

Walk-out basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Mirror Reverse

$50 $40

Note : If you order a Material List, as well as an alternate foundation, Exterior wall change, your Material List may not reflect your alternate options.

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Main floor Master Guest suite Teen suite/Jack & Jill bath
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Family room Great room Main Floor laundry Loft / balcony Formal dining room Unfinished/future space
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Oversized garage (3+) Side-entry garage

Additional Services

Other house plans by this Designer

Plan 106-661

Plan 106-654

Plan 106-512

Plan 106-440

Plan 106-737

Plan 106-633

See All

House Plan Features

Lot Characteristics
Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Main floor Master Guest suite Teen suite/Jack & Jill bath
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Family room Great room Main Floor laundry Loft / balcony Formal dining room Unfinished/future space
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Oversized garage (3+) Side-entry garage

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
