Colonial House Plan - 3 Bedrooms, 3 Bath, 2882 Sq Ft Plan 77-330

House Plans > Colonial Style > Plan 77-330

3 Bedroom , 3 Bath Colonial House Plan #77-330

SHARE ON
  • 77-330e.webp
Reverse
  • 77-330e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 3 Bath Colonial House Plan #77-330

Key Specs:
  • img 2882 Sq. Ft.
  • img 3 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 3 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

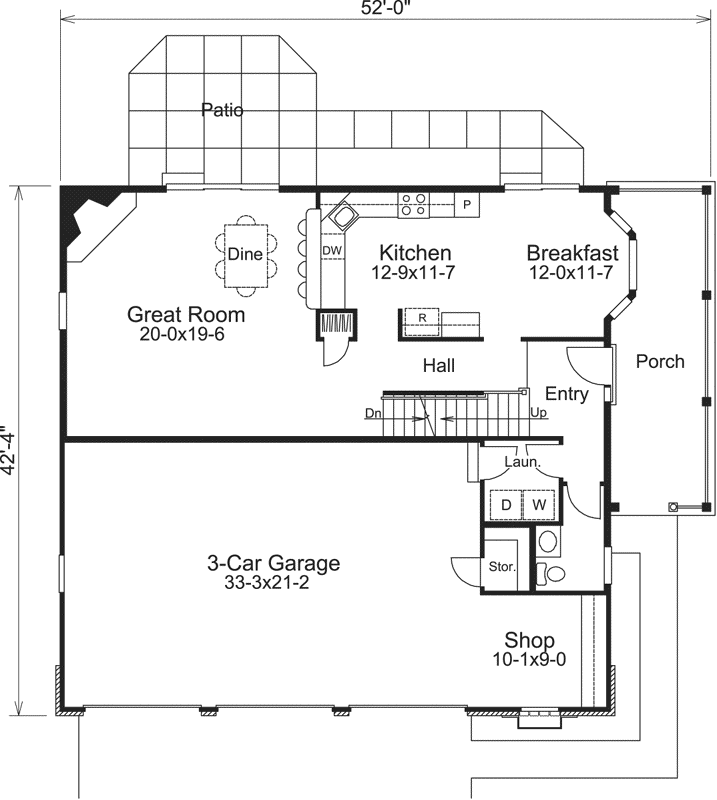

    Main Floor Plan: 77-330

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

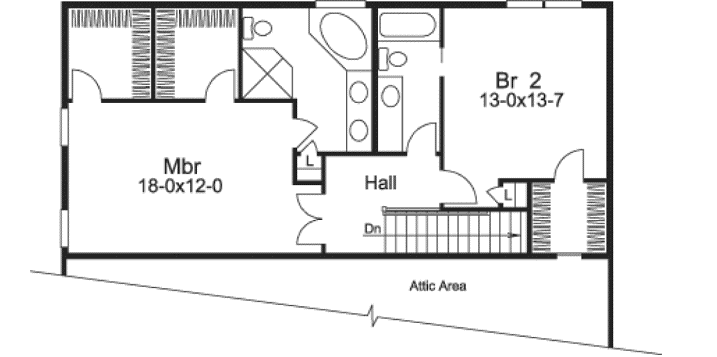

    Upper/Second Floor Plan: 77-330

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Lower Floor Plan: 77-330
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-330

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Carefully Designed For Energy Efficiency2882 total square feet of living areaSpecial featuresThe insulated garage acts as a thermal barrier the roof deflects winds and triple-glazed insulated wood windows and doors are used in major glass areas facing south all provide energy savings in the home designed for north orientationAn approximate value of R34 with R70 in the attic are created by the 2 x 6 walls with multiple insulating materials A natural cooling system created by a 40' long buried pipe that provides a constant 55-degree earth temperature is included in the basement with insulated walls 3 bedrooms 3 12 baths 3-car garageBasement foundation 1043 square feet on the first floor 902 square feet on the second floor and 937 square feet on the lower level

This floor plan is found in our Colonial house plans section

Full Specs and Features

Total Living Area

Main floor: 1043

Upper floor: 902

Lower Floor: 937

Porches: 208

Total Finished Sq. Ft.: 2882
Beds/Baths

Bedrooms: 3

Full Baths: 3

Half Baths: 1
Garage

Garage: 813

Garage Stalls: 3
Levels

2 stories
Dimension

Width: 52' 0"

Depth: 42' 4"

Height: 23' 0"
Roof slope

5:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

8' (Main)
8' (Upper)

Foundation Options

  • Basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1249

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $1249

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1749

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • Basement Standard With Plan
