Craftsman House Plan - 2 Bedrooms, 2 Bath, 1613 Sq Ft Plan 48-122

House Plans > Craftsman Style > Plan 48-122

2 Bedroom , 2 Bath Craftsman House Plan #48-122

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Total overall dimensions with alternate carport - 96'-6" x 51'-4"

2 Bedroom , 2 Bath Craftsman House Plan #48-122

Key Specs:

1613 Sq. Ft.
2 Bedrooms
2 Full Baths
1 Story
2 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

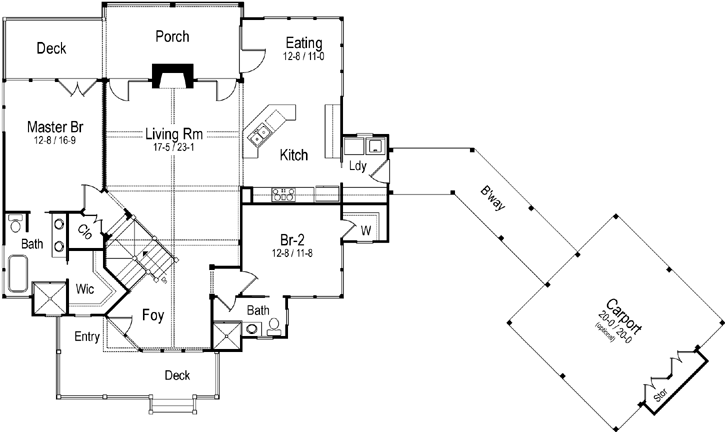

Main Floor
Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

Rear/Alternate Elevations

Rear Elevation

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area	Main floor: 1613 Basement: 1530	Porches: 169 Total Finished Sq. Ft.: 1613
Beds/Baths	Bedrooms: 2 Full Baths: 2
Garage	Garage: 420 Garage Stalls: 2
Levels	1 story
Dimension	Width: 44' 0" Depth: 43' 3"	Height: 19' 5"
Roof slope	8:12 (primary)
Walls (exterior)	2"x4"
Ceiling heights	9' (Main)

Foundation Options

Daylight basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Guest suite
Kitchen
Island Eating bar
Interior Features
Hobby / rec-room Great room Media room Open concept floor plan No formal living/dining Den / office / computer
Exterior Features
Covered rear porch Breezeway
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Carport

Additional Services

Other house plans by this Designer

Mountain-or-Rustic Style Home Design 48-145

Plan 48-145

Plan 48-143

Plan 48-113

Plan 48-133

Plan 48-142

Plan 48-117

See All

House Plan Features

Lot Characteristics
Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Guest suite
Kitchen
Island Eating bar
Interior Features
Hobby / rec-room Great room Media room Open concept floor plan No formal living/dining Den / office / computer
Exterior Features
Covered rear porch Breezeway
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Carport

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
