4 Bedroom , 2 Bath Craftsman House Plan #23-489

SHARE ON
  • 23-489e.webp
  • 23-489p1.webp
Reverse
  • 23-489e.webp
  • 23-489p1.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 2 Bath Craftsman House Plan #23-489

Key Specs:
  • img 2697 Sq. Ft.
  • img 4 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

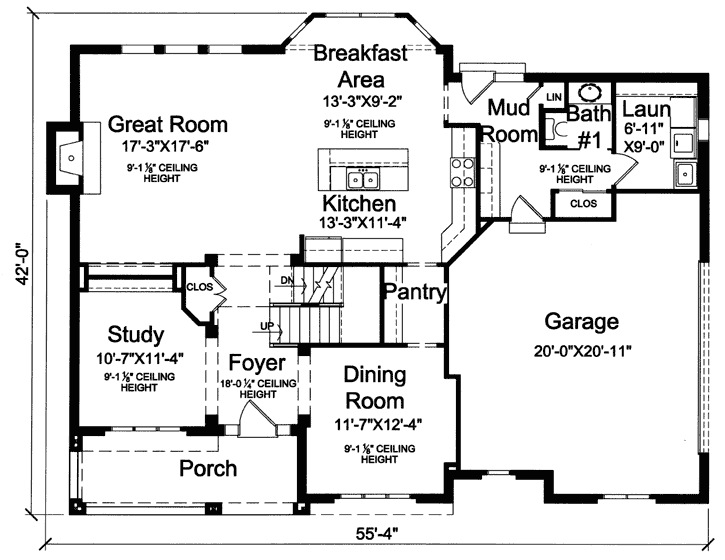

    Main Floor Plan: 23-489

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

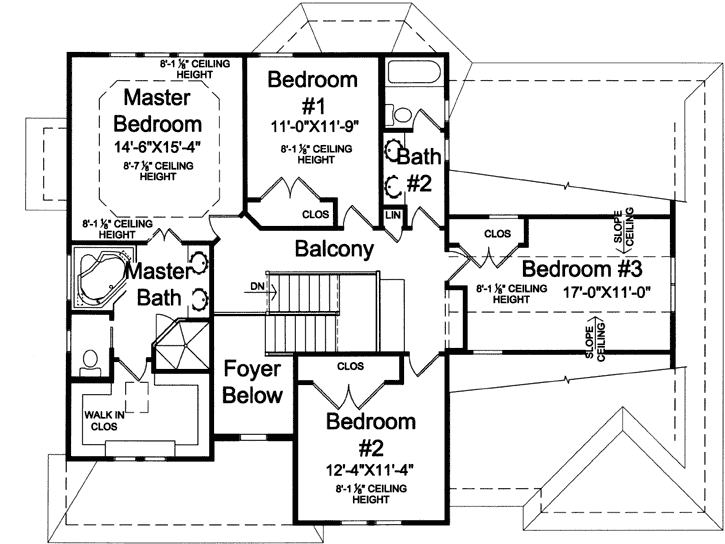

    Upper/Second Floor Plan: 23-489

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

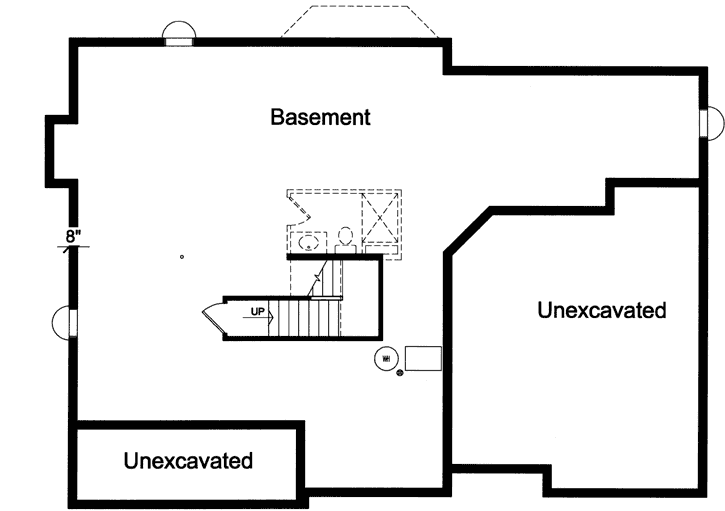

    Lower Floor Plan: 23-489
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 23-489

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

ulliA fresh approach to a popular floor plan includes exciting details to please the homeowner. lili The exterior presents an Arts and Craft dcor while the 9 ceiling height Mud Room Butlers Pantry large 7 island with seating and turned stairs introduce elements found in much larger homes. lili The large breakfast bay offers a panoramic view to the rear yard and a Dining Room adds a formal space. lili The private Study has become a vital part of the modern floor plan while a Great Room with Fireplace opens generously to the Breakfast Room and Kitchen. lili The second floor Master Bedroom boasts a bath with whirlpool tub double bowl vanity commode room and shower. lili Three additional bedrooms an open rail balcony and a built-in desk area complete this exciting home. liul

This floor plan is found in our Craftsman house plans section

Full Specs and Features

Total Living Area

Main floor: 1400

Upper floor: 1297

Basement: 1400

Porches: 125

Total Finished Sq. Ft.: 2697
Beds/Baths

Bedrooms: 4

Full Baths: 2

Half Baths: 1
Garage

Garage: 463

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 55' 4"

Depth: 42' 0"

Height: 25' 1"
Roof slope

7:12 (primary)

5:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

9' (Main)
8' (Upper)
Exterior Finish

Combination
Roof Framing

Truss

Foundation Options

  • Basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • PDF (recommended) $1050 $840

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1425 $1140

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • PDF + 5 $1100 $880

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • Unlimited Build - CAD $1775 $1420

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $820 $656

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Basement Standard With Plan
