5 Bedroom , 3 Bath Craftsman House Plan #31-117

SHARE ON
  • 31-117e.webp
Reverse
  • 31-117e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Ceiling Heights other than standard 8':
Master: 8'-0" at walls to 9'-8" at ridge
Nook/Kitchen/Great Rm: 8'-0" at wall to11'-0" at ridge
Dining: 9'-4"
Bedroom 2/Living Rm: 8'-0" at exterior wall sloping to 11'-0" at closet wall

5 Bedroom , 3 Bath Craftsman House Plan #31-117

Key Specs:
  • img 2763 Sq. Ft.
  • img 5 Bedrooms
  • img 3 Full Baths
  • img 1 Story
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

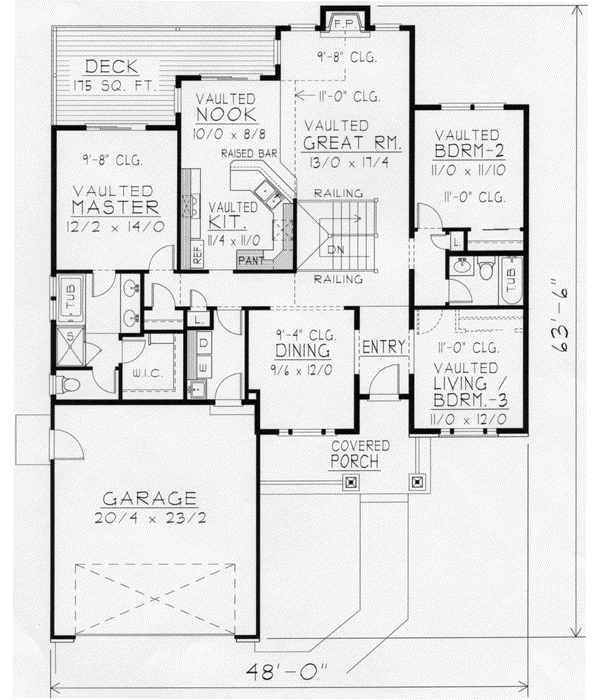

    Main Floor Plan: 31-117

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

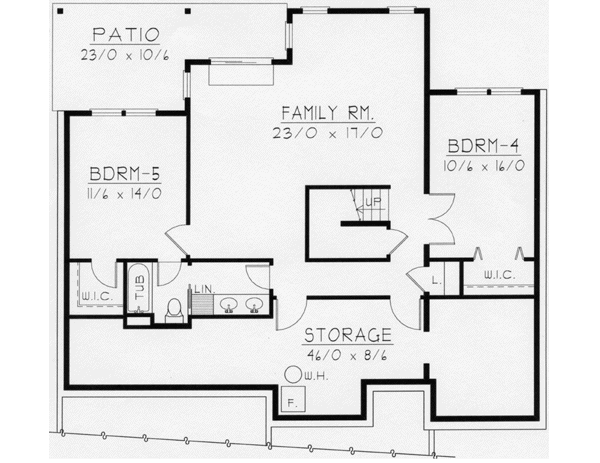

    Lower Floor Plan: 31-117
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 31-117

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

- The covered Front Porch is a great place to relax after a hard day.- The open floor plan keeps the entire family involved in activities.- Master features a vaulted ceiling a walk-in closet dressing area double sinks a corner tub separate shower and a private toilet compartment.- Fantastic Kitchen includes vaulted ceilings an eating bar and a pantry.- The Living Room could become a Bedroom and the formal Dining could serve as a Den making this plan very flexible.- The main floor Laundry is located off of the 2 car Garage and close to the Master for convenience.- Downstairs the huge Family Room is great for entertaining.- Two spacious Bedrooms a full Bathroom and a ton of Storage round out the Basement.

This floor plan is found in our Craftsman house plans section

Full Specs and Features

Total Living Area

Main floor: 1637

Lower Floor: 1129

Basement: 480

Porches: 492

Total Finished Sq. Ft.: 2763
Beds/Baths

Bedrooms: 5

Full Baths: 3
Garage

Garage: 120

Garage Stalls: 2
Levels

1 story
Dimension

Width: 48' 0"

Depth: 63' 6"

Height: 17' 10"
Roof slope

6:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

8' (Main)

Foundation Options

  • Basement $275
  • Walk-out basement Standard With Plan
  • Crawlspace $275
  • Slab $275
