Craftsman House Plan - 4 Bedrooms, 4 Bath, 2995 Sq Ft Plan 24-232

House Plans > Craftsman Style > Plan 24-232

4 Bedroom , 4 Bath Craftsman House Plan #24-232

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Study set is delivered as PDF file via email only.

4 Bedroom , 4 Bath Craftsman House Plan #24-232

Key Specs:

2995 Sq. Ft.
4 Bedrooms
4 Full Baths
2 Stories
2 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

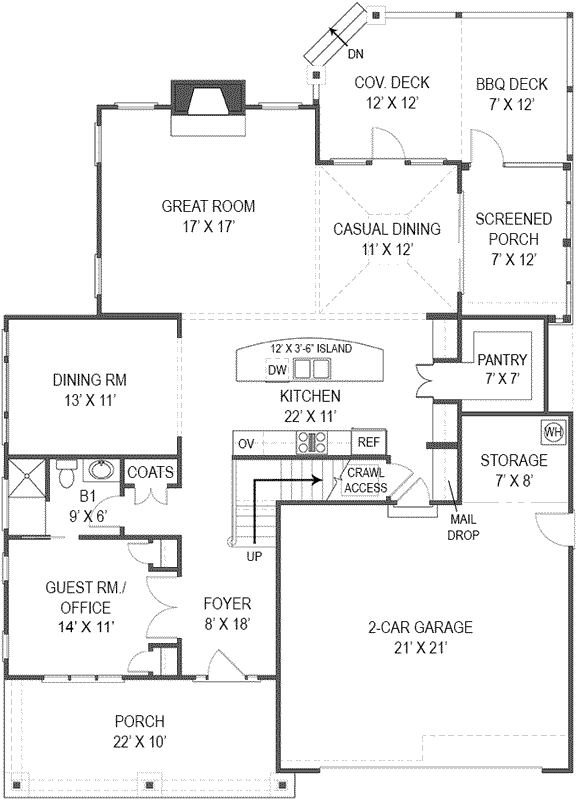

Main Floor

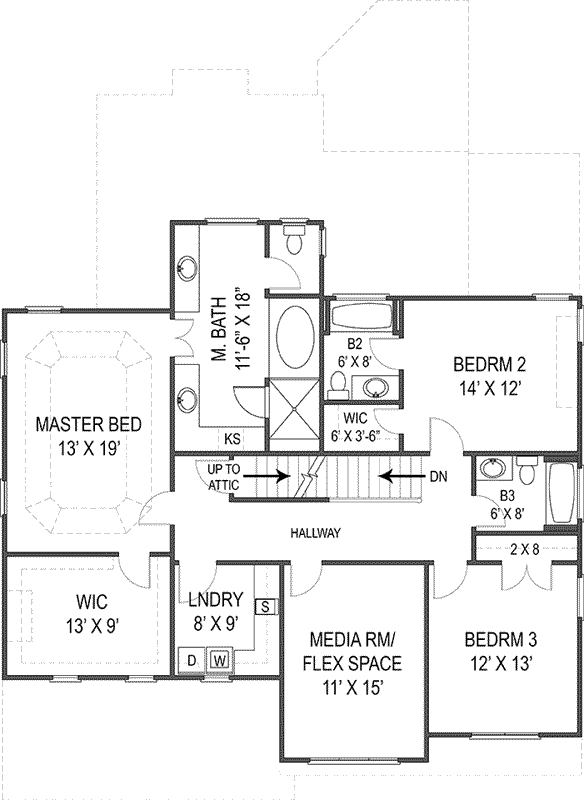

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

Rear/Alternate Elevations

Rear Elevation

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

Alternate Elevations

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area	Main floor: 1402 Upper floor: 1593	Total Finished Sq. Ft.: 2995
Beds/Baths	Bedrooms: 4 Full Baths: 4
Garage	Garage: 583 Garage Stalls: 2
Levels	2 stories
Dimension	Width: 46' 0" Depth: 65' 0"	Height: 36' 0"
Walls (exterior)	2"x4"
Ceiling heights	10' (Main) 9' (Upper)

Foundation Options

Crawlspace Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Right Reading Reverse

$200 $160

Extra Sets

$120 $96 /each

Note : If you order a Material List, as well as an alternate foundation, Exterior wall change, your Material List may not reflect your alternate options.

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a narrow lot
Bedrooms & Baths
Upstairs Master Guest suite
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Great room Upstairs laundry Media room Open concept floor plan Formal dining room Den / office / computer
Exterior Features
Covered front porch Covered rear porch Screened porch/sunroom
Unique Features
Photos Available

Additional Services

Other house plans by this Designer

Mountain-or-Rustic Style Floor Plans 24-231

Plan 24-231

Plan 24-220

Plan 24-240

Modern-Farmhouse Style Floor Plans 24-263

Plan 24-263

Plan 24-274

Plan 24-268

See All

House Plan Features

Lot Characteristics
Suited for a narrow lot
Bedrooms & Baths
Upstairs Master Guest suite
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Great room Upstairs laundry Media room Open concept floor plan Formal dining room Den / office / computer
Exterior Features
Covered front porch Covered rear porch Screened porch/sunroom
Unique Features
Photos Available

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
