Craftsman House Plan - 3 Bedrooms, 3 Bath, 3232 Sq Ft Plan 17-813
  • BLACK FRIDAY SALE !!! 20% OFF MOST PLANS !!!

House Plans > Craftsman Style > Plan 17-813

3 Bedroom , 3 Bath Craftsman House Plan #17-813

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 3 Bath Craftsman House Plan #17-813

Key Specs:
  • img 3232 Sq. Ft.
  • img 3 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

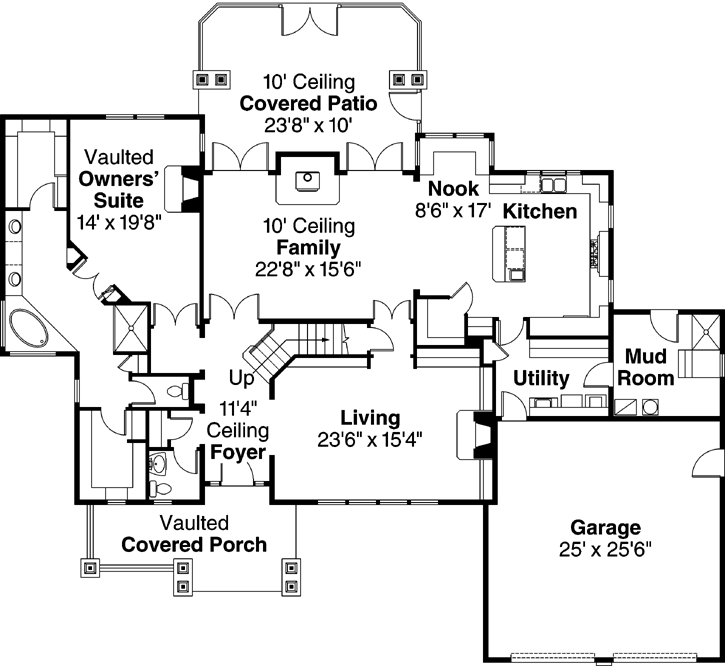

    Main Floor Plan: 17-813
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

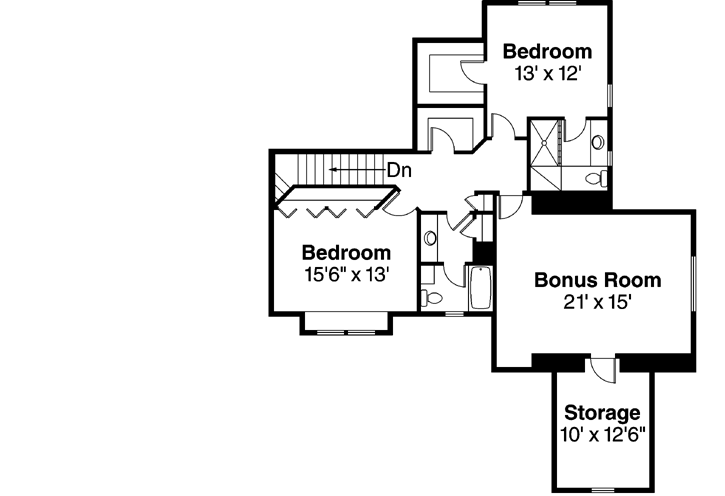

    Upper/Second Floor Plan: 17-813
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 17-813

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Each of the numerous windows has Craftsman-style multipaned window uppers and a slender row of them caps each garage door. Shake textured siding fills the gable fronts while tapered columns support and highlight the front porch as well as the covered patio at the rear. Bold and handsome king posts crown the porch entry. Entering via the vaulted porch you step into a high-ceilinged foyer. A wide opening on the right leads into a living room with a fireplace shelving and a computer desk. The smaller opening on the left brings you into an alcove with two doors. One opens a coat closet and the other goes to a powder room. Large and naturally bright the family room is at the heart of this home. Decorative drop beams run front to back drawing eyes to the stone-lined woodstove alcove at the rear and the transom-crowned atrium doors that flank it. This spacious area then flows into the nook and kitchen. Built-in seating lines the nook's rectangular window bay. Cabinets and built-in appliances line the kitchen on three sides while counters run along two. A raised conversation bar rims a work island with a prep sink and a roomy walk-in pantry fills one corner. Laundry appliances are nearby in a spacious well-appointed utility room with links to both the garage and a pass-through mudroom with backyard access. The vaulted owners' suite is a secluded retreat. It boasts a fireplace a luxurious bathroom and two deep walk-in closets. Two more bedrooms and bathrooms are upstairs along with a skylit bonus room and an attic-style storage room.

This floor plan is found in our Craftsman house plans section

Full Specs and Features

Total Living Area

Main floor: 2445

Upper floor: 787

Bonus: 495

Total Finished Sq. Ft.: 3232

Beds/Baths

Bedrooms: 3

Full Baths: 3

Half Baths: 1

Garage

Garage: 663

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 78' 0"

Depth: 63' 0"

Height: 28' 6"

Roof slope

8:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Main)

Foundation Options

  • Basement $715
  • Crawlspace Standard With Plan
  • Slab $580

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Monster Material List
Optional Add-Ons

Subtotal: $0

Need Some Quick Tips Or Advice?

We want to help you design the house of your dreams as best as we can. If you can't find the answers you're looking for here, get in touch with our licensed architect or a designer!
