Craftsman House Plan - 3 Bedrooms, 3 Bath, 3653 Sq Ft Plan 17-616

House Plans > Craftsman Style > Plan 17-616

3 Bedroom , 3 Bath Craftsman House Plan #17-616

SHARE ON
  • 17-616e.webp
Reverse
  • 17-616e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 3 Bath Craftsman House Plan #17-616

Key Specs:
  • img 3653 Sq. Ft.
  • img 3 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

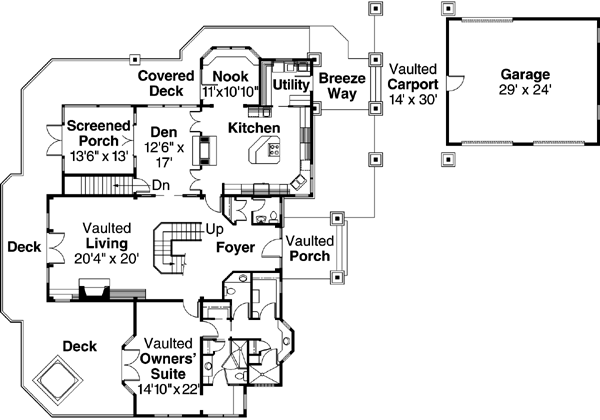

    Main Floor Plan: 17-616

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

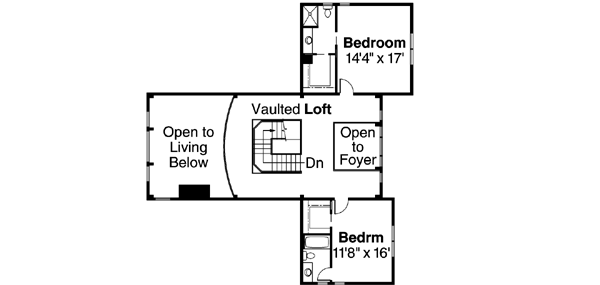

    Upper/Second Floor Plan: 17-616

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

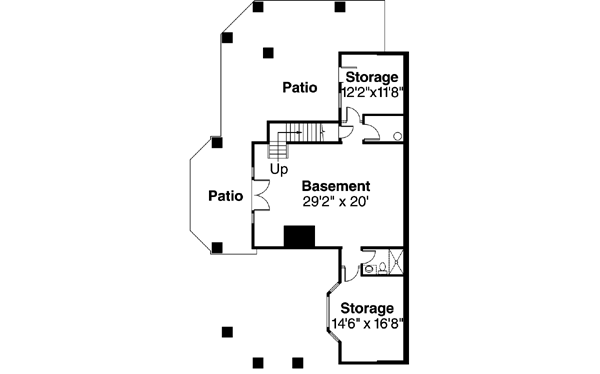

    Lower Floor Plan: 17-616

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area

Main floor: 2506

Upper floor: 1147

Lower Floor: 1147

Bonus: 189

Total Finished Sq. Ft.: 3653
Beds/Baths

Bedrooms: 3

Full Baths: 3

Half Baths: 1
Garage

Garage: 750

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 108' 0"

Depth: 80' 0"

Height: 31' 6"
Roof slope

9:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

10' (Main)

Foundation Options

  • Basement $715
  • Daylight basement Standard With Plan
  • Crawlspace $580
  • Slab $580

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • PDF (recommended) $3175

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF Light $1650

    This is the package you would want to buy if you are not making modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF Light + 5 $2000

    This is the package you would want to buy if you are not making modifications to the drawings. This is a PDF file that is emailed to you plus 5 complete sets that are shipped to you.

  • CAD $3475

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $3800

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $1325

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Basement $715
  • Daylight basement Standard With Plan
  • Crawlspace $580
  • Slab $580
Monster Material List
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Additional Services

House Plan Features

Additional Services

Need Some Quick Tips Or Advice?

We want to help you design the house of your dreams as best as we can. If you can't find the answers you're looking for here, get in touch with our licensed architect or a designer!
