Craftsman House Plan - 4 Bedrooms, 4 Bath, 3757 Sq Ft Plan 48-142

House Plans > Craftsman Style > Plan 48-142

4 Bedroom , 4 Bath Craftsman House Plan #48-142

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 4 Bath Craftsman House Plan #48-142

Key Specs:

3757 Sq. Ft.
4 Bedrooms
4-1/2 Baths
2 Stories
2 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

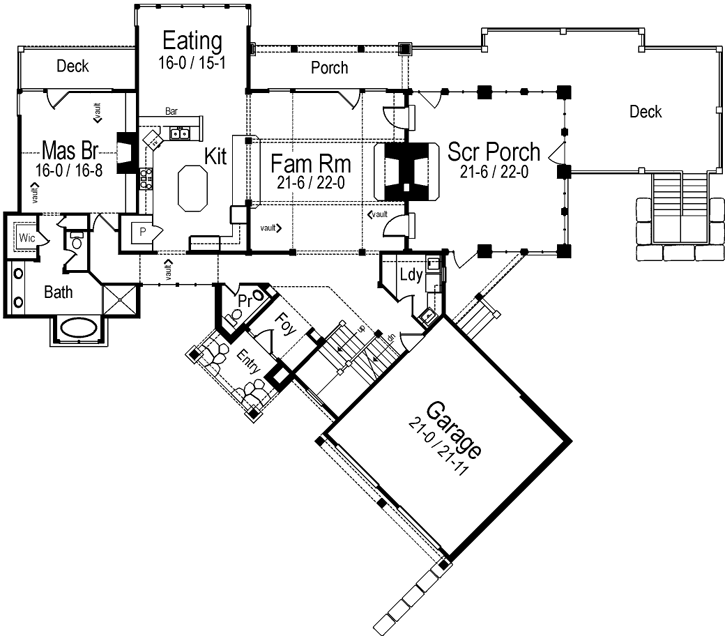

Main Floor

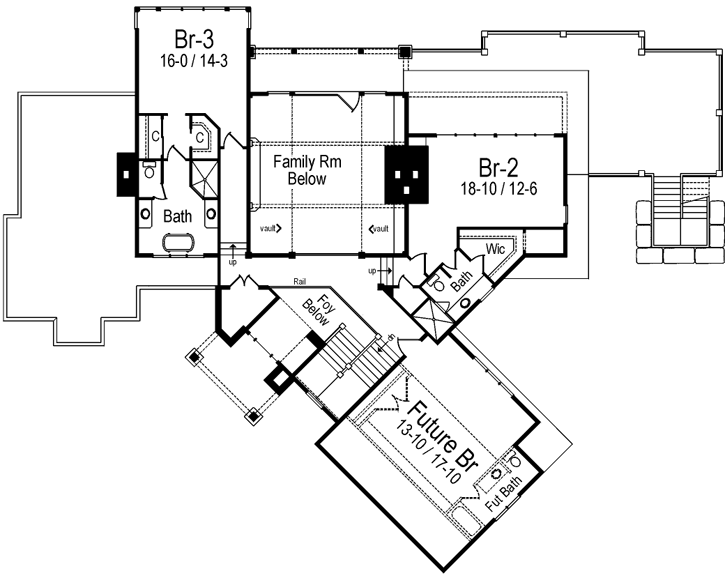

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

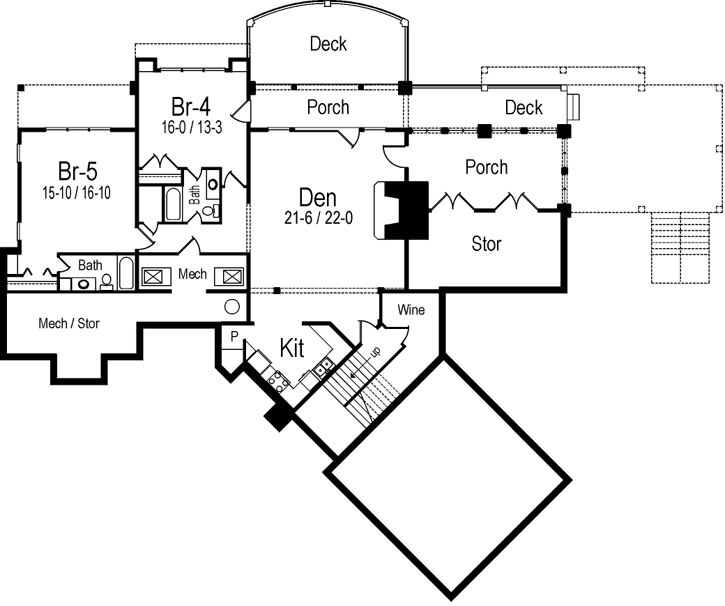

Lower Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

Rear/Alternate Elevations

Rear Elevation

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area	Main floor: 2228 Upper floor: 1529	Basement: 1475 Porches: 1094	Total Finished Sq. Ft.: 3757
Beds/Baths	Bedrooms: 4 Full Baths: 4	Half Baths: 1
Garage	Garage: 523 Garage Stalls: 2
Levels	2 stories
Dimension	Width: 95' 0" Depth: 75' 5"	Height: 34' 0"
Roof slope	12:12 (primary) 6:12 (secondary)
Walls (exterior)	2"x4"
Ceiling heights	10' (Main) 9' (Upper)

Foundation Options

Walk-out basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Main floor Master Teen suite/Jack & Jill bath In-law quarters/apartment
Kitchen
Island Eating bar Nook / breakfast
Interior Features
Family room Great room Main Floor laundry Open concept floor plan No formal living/dining Den / office / computer Unfinished/future space
Exterior Features
Covered rear porch Screened porch/sunroom
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Side-entry garage

Additional Services

Other house plans by this Designer

Mountain-or-Rustic Style Floor Plans 48-145

Plan 48-145

Plan 48-143

Plan 48-113

Plan 48-133

Plan 48-142

Plan 48-117

See All

House Plan Features

Lot Characteristics
Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Main floor Master Teen suite/Jack & Jill bath In-law quarters/apartment
Kitchen
Island Eating bar Nook / breakfast
Interior Features
Family room Great room Main Floor laundry Open concept floor plan No formal living/dining Den / office / computer Unfinished/future space
Exterior Features
Covered rear porch Screened porch/sunroom
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Side-entry garage

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
