House Plans > Craftsman Style > Plan 26-147
0 Bedroom , 0 Bath Craftsman House Plan #26-147
All plans are copyrighted by the individual designer.
Photographs may reflect custom changes that were not included in the original design.
0 Bedroom , 0 Bath Craftsman House Plan #26-147
-
![img]()
628 Sq. Ft.
-
![img]()
1 Story
-
![img]()
2 Garages
-
Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

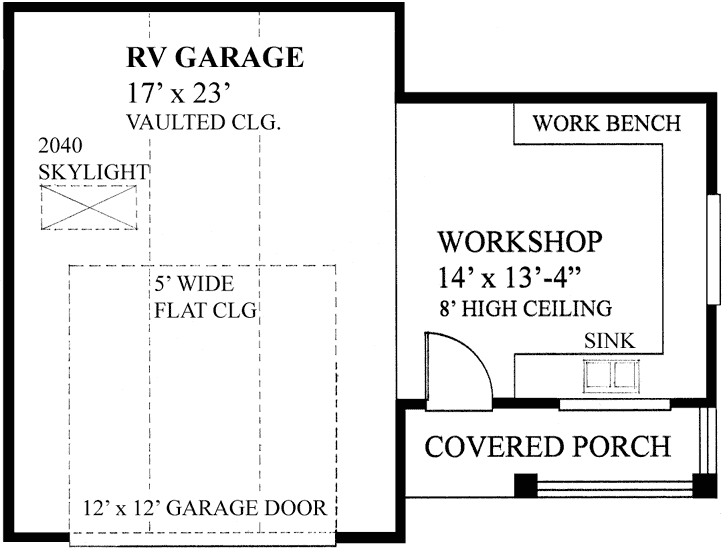

Main Floor
![Main Floor Plan: 26-147]()
See more Specs about plan
FULL SPECS AND FEATURESHouse Plan Highlights
- This RV Garage with Workshop plan provides two distinct and specific work and storage spaces.
- The RV garage portion boasts a twelve-foot ceiling sloping to thirteen-feet six inches with a 12’ wide by 12’ high overhead garage door.
- Extra natural light is provided by a large skylight.
- Plans could be modified to accommodate a rear overhead garage door for drive through ease if required.
- The workshop portion of this plan has an eight-foot ceiling height with ample work bench space including a wash up sink location.
- Add a wall between the two spaces to control separate activities if required.
This floor plan is found in our Craftsman house plans section
Full Specs and Features
| Total Living Area |
Porches: 56 Total Finished Sq. Ft.: 628 |
|
|---|---|---|
| Garage |
Garage: 628 Garage Stalls: 2 |
|
| Levels |
1 story |
|
| Dimension |
Width: 32' 0" Depth: 24' 0" |
Height: 18' 6" |
| Roof slope |
12:12 (primary) |
|
| Walls (exterior) |
2"x6" |
|
| Ceiling heights |
12' (Main) |
|
| Exterior Finish |
Siding |
|
| Roof Framing |
Truss |
Foundation Options
- Slab Standard With Plan
