Hampton House Plan - 4 Bedrooms, 2 Bath, 3015 Sq Ft Plan 88-511

House Plans > Hampton Style > Plan 88-511

4 Bedroom , 2 Bath Hampton House Plan #88-511

SHARE ON

Reverse

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Additional fees apply when building in Washington State. Please contact us for details. Please note: An electrical schematic is not included.

4 Bedroom , 2 Bath Hampton House Plan #88-511

Key Specs:

3015 Sq. Ft.
4 Bedrooms
2-1/2 Baths
2 Stories
3 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

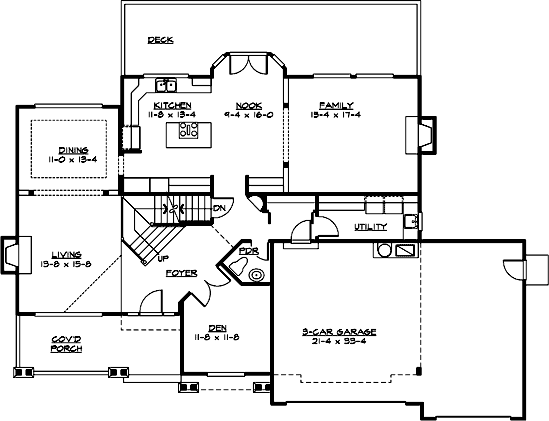

Main Floor

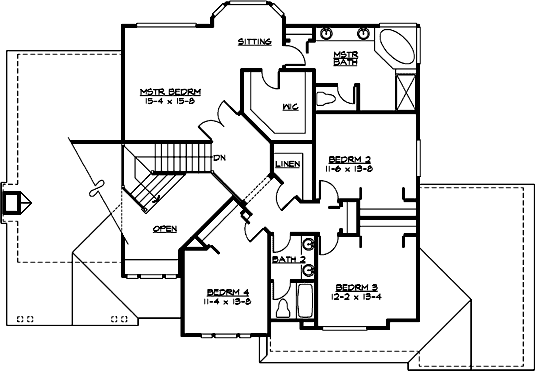

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

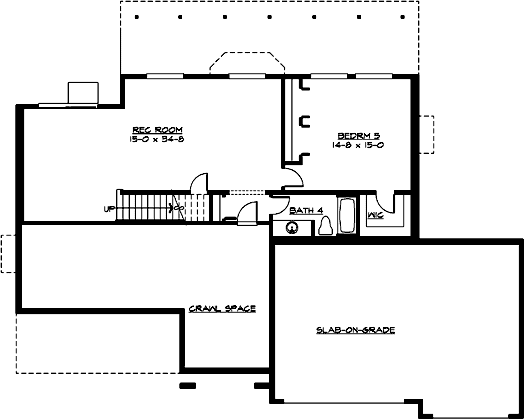

Lower Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

Rear/Alternate Elevations

Rear Elevation

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area	Main floor: 1594 Upper floor: 1421	Total Finished Sq. Ft.: 3015
Beds/Baths	Bedrooms: 4 Full Baths: 2	Half Baths: 1
Garage	Garage: 775 Garage Stalls: 3
Levels	2 stories
Dimension	Width: 68' 0" Depth: 49' 0"	Height: 30' 0"
Roof slope	8:12 (primary)
Ceiling heights	9' (Main) 8' (Upper)

Foundation Options

Crawlspace Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a down-sloping lot
Bedrooms & Baths
Upstairs Master Master sitting area/Nursery
Kitchen
Island Eating bar Nook / breakfast
Interior Features
Family room Hobby / rec-room Main Floor laundry Formal dining room Formal living room Den / office / computer Unfinished/future space
Exterior Features
Covered front porch
Unique Features
Photos Available
Garage
Oversized garage (3+)

Additional Services

Other house plans by this Designer

Plan 88-1038

Plan 88-1036

Plan 88-1039

Plan 88-1040

Plan 88-1041

Plan 88-1037

See All

House Plan Features

Lot Characteristics
Suited for a down-sloping lot
Bedrooms & Baths
Upstairs Master Master sitting area/Nursery
Kitchen
Island Eating bar Nook / breakfast
Interior Features
Family room Hobby / rec-room Main Floor laundry Formal dining room Formal living room Den / office / computer Unfinished/future space
Exterior Features
Covered front porch
Unique Features
Photos Available
Garage
Oversized garage (3+)

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
