Mediterranean House Plan - 4 Bedrooms, 3 Bath, 4084 Sq Ft Plan 106-507

House Plans > Mediterranean Style > Plan 106-507

4 Bedroom , 3 Bath Mediterranean House Plan #106-507

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 3 Bath Mediterranean House Plan #106-507

Key Specs:

4084 Sq. Ft.
4 Bedrooms
3-1/2 Baths
1 Story
3 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

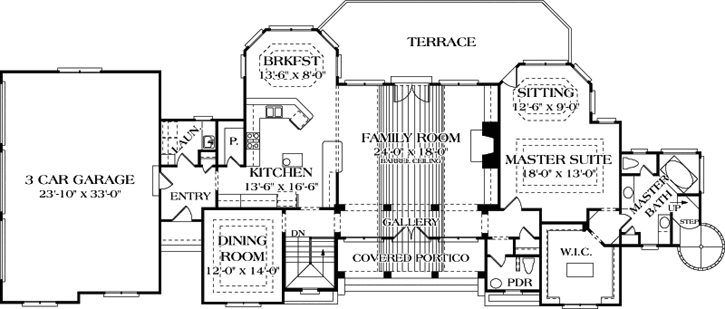

Main Floor

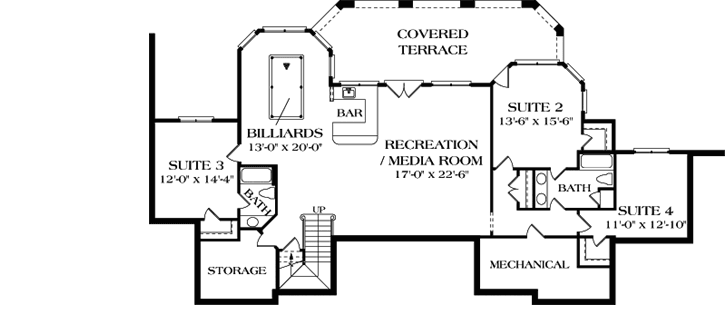

Lower Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

Rear/Alternate Elevations

Rear Elevation

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

A barrel vaulted ceiling extends from the portico through the family room of this Italianate design. We made the master bath a luxurious haven featuring a shower in a glass block turret and a tub under corner windows.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area	Main floor: 2262 Basement: 1822	Total Finished Sq. Ft.: 4084
Beds/Baths	Bedrooms: 4 Full Baths: 3	Half Baths: 1
Garage	Garage: 844 Garage Stalls: 3
Levels	1 story
Dimension	Width: 109' 11" Depth: 46' 0"
Walls (exterior)	2"x4"
Ceiling heights	10' (Main)

Foundation Options

Walk-out basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Mirror Reverse

$50 $40

Note : If you order a Material List, as well as an alternate foundation, Exterior wall change, your Material List may not reflect your alternate options.

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for corner lots Suited for a back view Suited for a down-sloping lot
Bedrooms & Baths
Guest suite Master sitting area/Nursery
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Family room Hobby / rec-room Open concept floor plan Formal dining room
Exterior Features
Covered rear porch
Unique Features
Vaulted/Volume/Dramatic ceilings
Garage
Oversized garage (3+) Side-entry garage
