1 Bedroom , 1 Bath Mediterranean House Plan #77-198

SHARE ON
  • 77-198e.webp
Reverse
  • 77-198e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

1 Bedroom , 1 Bath Mediterranean House Plan #77-198

Key Specs:
  • img 891 Sq. Ft.
  • img 1 Bedrooms
  • img 1 Full Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

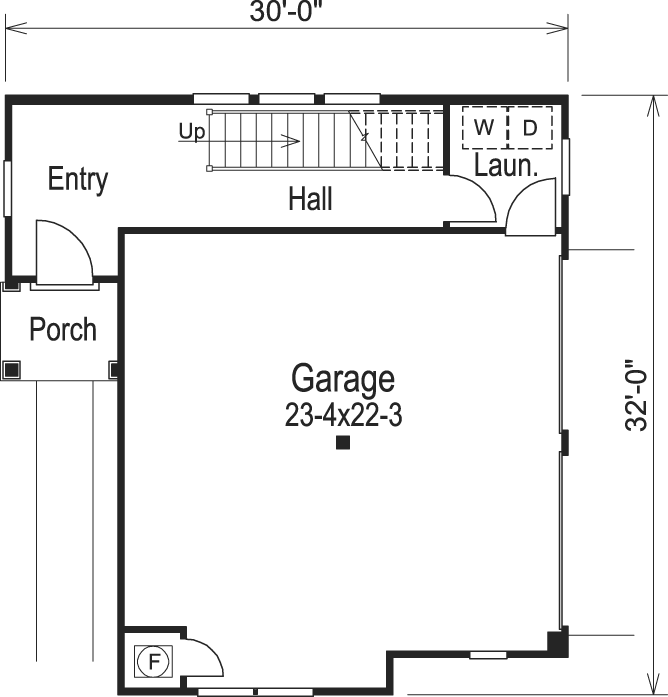

    Main Floor Plan: 77-198

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

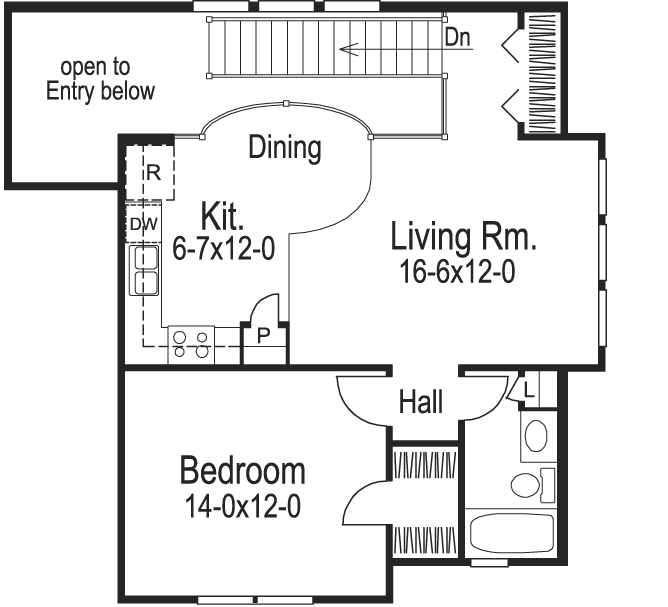

    Upper/Second Floor Plan: 77-198
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-198

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Apartment Garage With Atrium891 total square feet of living areaSpecial featuresThe large living space includes a coat closet in the entry an L-shaped kitchen with pantry and a dining areabalcony overlooking an atrium window wallThe vaulted entry with laundry room leads to a spacious second floor apartmentThe roomy bedroom with walk-in closet is convenient to the hall bath1 bedroom 1 bath 2-car side entry garage Slab foundation238 square feet on the first floor and 653 square feet on the second floor

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 238

Upper floor: 653

Porches: 30

Total Finished Sq. Ft.: 891
Beds/Baths

Bedrooms: 1

Full Baths: 1
Garage

Garage: 524

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 30' 0"

Depth: 32' 0"

Height: 27' 4"
Roof slope

9:12 (primary)
Walls (exterior)

2"x4"
Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Slab Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $750 $600

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $700 $560

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1000 $800

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • Single $650 $520

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Slab Standard With Plan
