Southwest House Plan - 4 Bedrooms, 3 Bath, 2962 Sq Ft Plan 40-584

House Plans > Southwest Style > Plan 40-584

4 Bedroom , 3 Bath Southwest House Plan #40-584

SHARE ON
  • 40-584e.webp
Reverse
  • 40-584e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Living & Family Room ceilings - 8' 6"

4 Bedroom , 3 Bath Southwest House Plan #40-584

Key Specs:
  • img 2962 Sq. Ft.
  • img 4 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

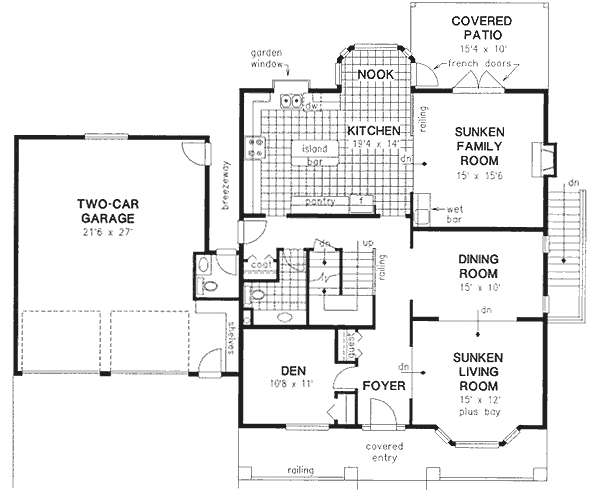

    Main Floor Plan: 40-584

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

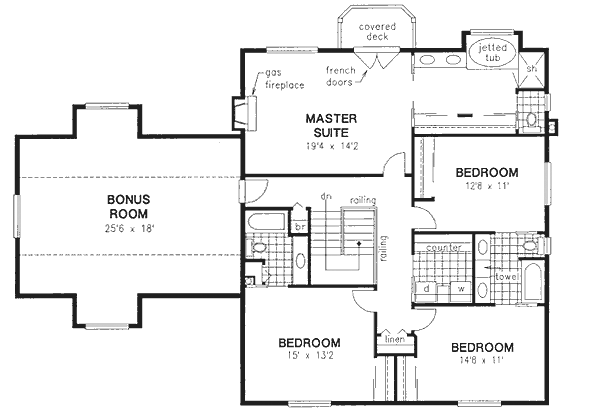

    Upper/Second Floor Plan: 40-584
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 40-584

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

CAD files are available in DXF format only.

This floor plan is found in our Southwest house plans section

Full Specs and Features

Total Living Area

Main floor: 1468

Upper floor: 1494

Total Finished Sq. Ft.: 2962
Beds/Baths

Bedrooms: 4

Full Baths: 3

Half Baths: 1
Garage

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 61' 8"

Depth: 50' 6"

Height: 29' 8"
Roof slope

8:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

8' (Main)

Foundation Options

  • Basement Standard With Plan
  • Walk-out basement $425
  • Crawlspace $295

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1415

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1564

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • PDF (recommended) $1215

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $2430

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • PDF + 5 $1665

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • CAD $2165

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $2915

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $1265

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Basement Standard With Plan
  • Walk-out basement $425
  • Crawlspace $295
Monster Material List
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Additional Services

House Plan Features

Additional Services

Need Some Quick Tips Or Advice?

We want to help you design the house of your dreams as best as we can. If you can't find the answers you're looking for here, get in touch with our licensed architect or a designer!
