Traditional House Plan - 3 Bedrooms, 2 Bath, 1340 Sq Ft Plan 77-186

House Plans > Traditional Style > Plan 77-186

3 Bedroom , 2 Bath Traditional House Plan #77-186

SHARE ON
  • 77-186e.webp
Reverse
  • 77-186e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 2 Bath Traditional House Plan #77-186

Key Specs:
  • img 1340 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img Split entry
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

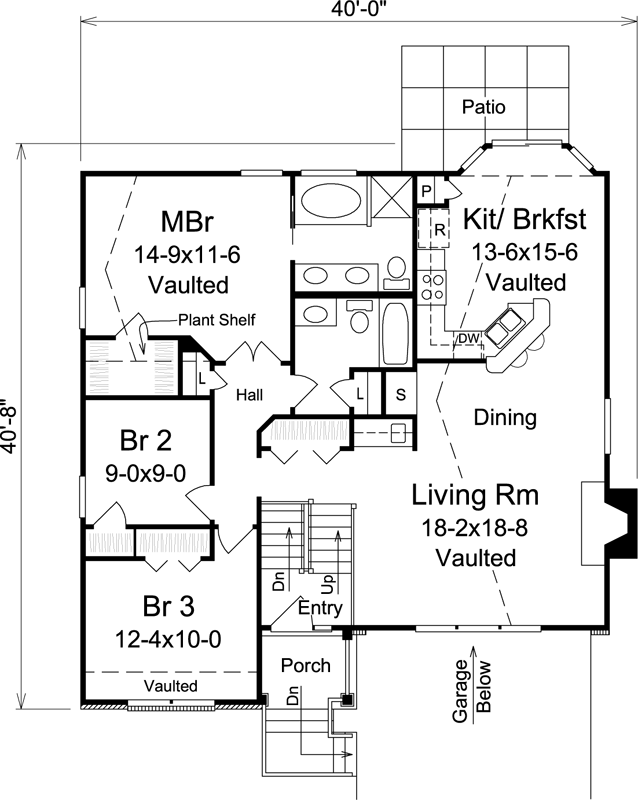

    Main Floor Plan: 77-186

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

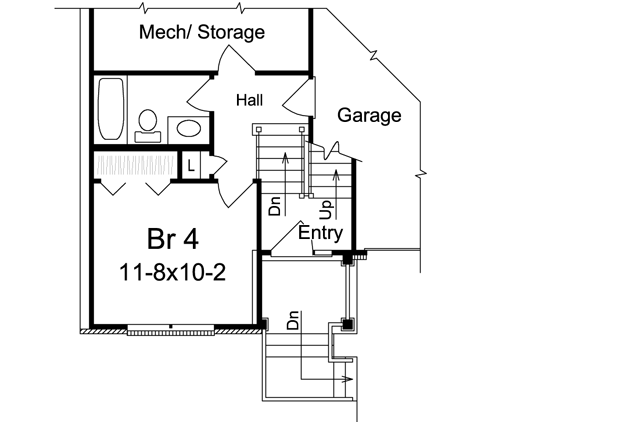

    Lower Floor Plan: 77-186
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-186

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Distinctive Home For Sloping Terrain1340 total square feet of living areaSpecial featuresThe vaulted master bedroom enjoys a double-door entry a walk-in closet and an elegant bathThe grand-sized vaulted living and dining rooms feature a fireplace and a wet bar and connect to the kitchen thanks to a breakfast counter The basement includes a huge two-car garage and space for a bedroombath expansionThe optional lower level has an additional 636 square feet of living area3 bedrooms 2 baths 2-car drive under garage Basement foundation

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 1340

Basement: 636

Porches: 33

Total Finished Sq. Ft.: 1340
Beds/Baths

Bedrooms: 3

Full Baths: 2
Garage

Garage: 727

Garage Stalls: 2
Levels

split entry
Dimension

Width: 40' 0"

Depth: 40' 8"

Height: 25' 6"
Roof slope

6:12 (primary)

9:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

8' (Main)

Foundation Options

  • Basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $949

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $949

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1299

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • Basement Standard With Plan
Monster Material List
Optional Add-Ons
