Traditional House Plan - 3 Bedrooms, 2 Bath, 1459 Sq Ft Plan 4-117

  • BLACK FRIDAY SALE !!! 20% OFF MOST PLANS !!!

House Plans > Traditional Style > Plan 4-117

3 Bedroom , 2 Bath Traditional House Plan #4-117

SHARE ON
  • 4-117e.webp
Reverse
  • 4-117e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 2 Bath Traditional House Plan #4-117

Key Specs:
  • img 1459 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img Split entry
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

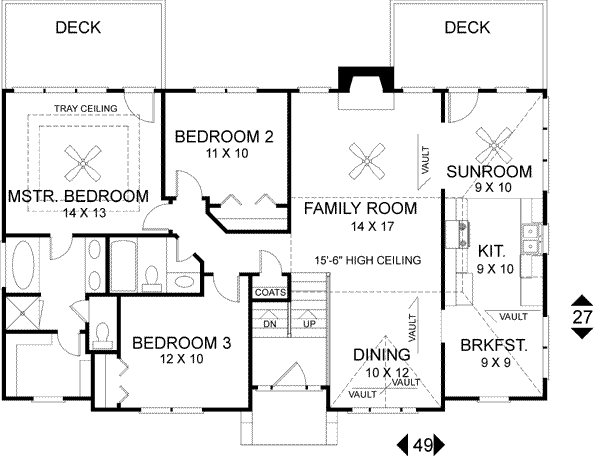

    Main Floor Plan: 4-117

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Lower Floor Plan: 4-117
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 4-117

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This extraordinary split-foyer home boasts far more than just a "pretty face". Careful attention to detail makes this economical 1459 square foot design as functional as it is attractive.


A covered stoop protects the inviting entry which is brightened by the glass door with sidelights and an arched transom. Vaults dramatize the family room, dining room, breakfast room, kitchen, and sunroom. A fireplace is the focal point of the family room. The spacious dining room is open to the family room and is adorned by a large "Palladian style" window. The efficient corridor kitchen includes a cabinet-style pantry. Adjoining the kitchen is the breakfast room and a sunroom, a feature seldom found in a home of this size. The sunroom provides access to one of the two decks, each measuring apx. 14' x 8'.


On the opposite end are the bedrooms. Two comfortably sized secondary bedrooms each open near the shared bath. The master suite is truly luxurious. Among it's many amenities are: a "double-step" tray ceiling, access to a private deck, a bath with double vanity, garden tub, shower, and toilet compartment, and a large walk-in closet.


On the lower level along with the enormous 22' x 26' garage is a laundry room. Abundant space for growth is available with an optional 520 square foot studio which includes a kitchenette, bedroom and bath.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 68

Upper floor: 1391

Total Finished Sq. Ft.: 1459
Beds/Baths

Bedrooms: 3

Full Baths: 2
Garage

Garage Stalls: 2
Levels

split entry
Dimension

Width: 49' 0"

Depth: 28' 0"

Height: 29' 0"
Roof slope

9:12 (primary)
Walls (exterior)

2"x4"
Ceiling heights

8' (Main)

Foundation Options

  • Daylight basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1245 $996

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1295 $1036

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • PDF (recommended) $1195 $956

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $2695 $2156

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • Unlimited Build - PDF + 5 $2973 $2378.4

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • PDF + 5 $1450 $1160

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • CAD $1595 $1276

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $3095 $2476

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Daylight basement Standard With Plan
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Additional Services

House Plan Features

Additional Services

Need Some Quick Tips Or Advice?

We want to help you design the house of your dreams as best as we can. If you can't find the answers you're looking for here, get in touch with our licensed architect or a designer!
