Traditional House Plan - 3 Bedrooms, 1 Bath, 1977 Sq Ft Plan 40-490

House Plans > Traditional Style > Plan 40-490

3 Bedroom , 1 Bath Traditional House Plan #40-490

SHARE ON
  • 40-490e.webp
Reverse
  • 40-490e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Foyer ceiling - 16'10"

3 Bedroom , 1 Bath Traditional House Plan #40-490

Key Specs:
  • img 1977 Sq. Ft.
  • img 3 Bedrooms
  • img 1-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

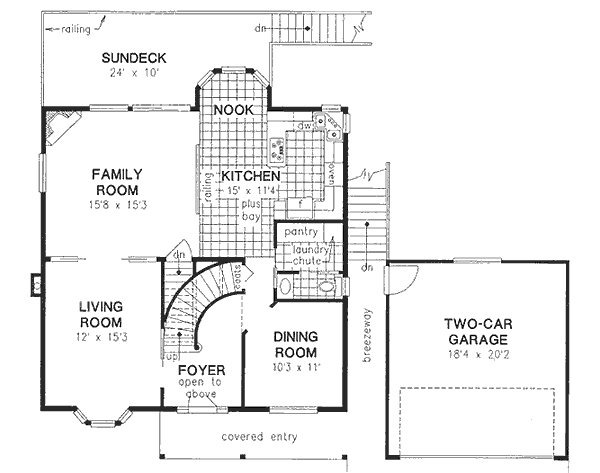

    Main Floor Plan: 40-490

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

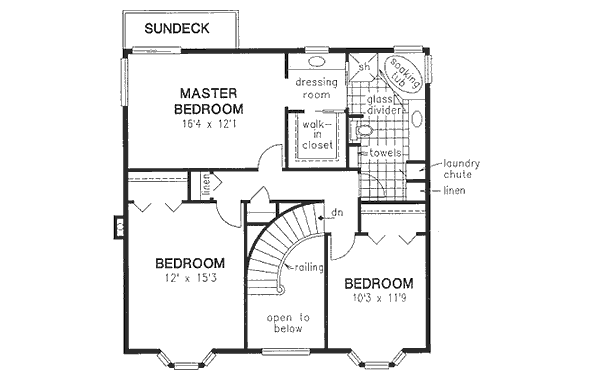

    Upper/Second Floor Plan: 40-490
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 40-490

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

CAD files are available in DXF format only.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 1059

Upper floor: 918

Total Finished Sq. Ft.: 1977
Beds/Baths

Bedrooms: 3

Full Baths: 1

Half Baths: 1
Garage

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 55' 0"

Depth: 41' 4"

Height: 24' 6"
Roof slope

5:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

8' (Main)

Foundation Options

  • Basement $395
  • Daylight basement Standard With Plan
  • Walk-out basement $425
  • Crawlspace $295

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1245

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1395

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • PDF (recommended) $1045

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $2090

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • PDF + 5 $1495

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • CAD $1995

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $2745

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $1095

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Basement $395
  • Daylight basement Standard With Plan
  • Walk-out basement $425
  • Crawlspace $295
