Traditional House Plan - 3 Bedrooms, 3 Bath, 2622 Sq Ft Plan 47-160

House Plans > Traditional Style > Plan 47-160

3 Bedroom , 3 Bath Traditional House Plan #47-160

SHARE ON
  • 47-160e.webp
Reverse
  • 47-160e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Allow 2 business days for PDF file

3 Bedroom , 3 Bath Traditional House Plan #47-160

Key Specs:
  • img 2622 Sq. Ft.
  • img 3 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

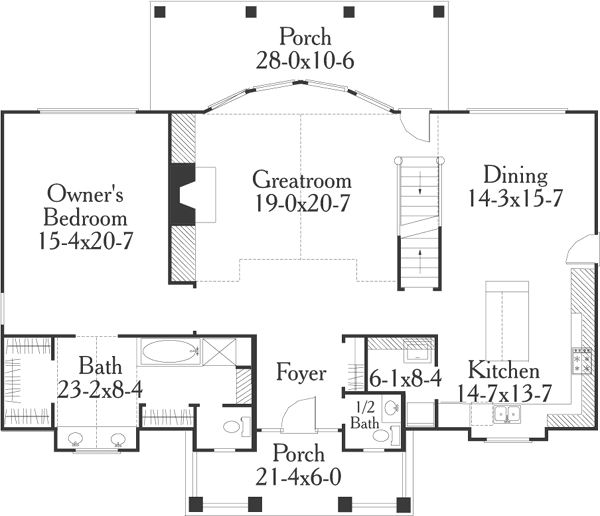

    Main Floor Plan: 47-160

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

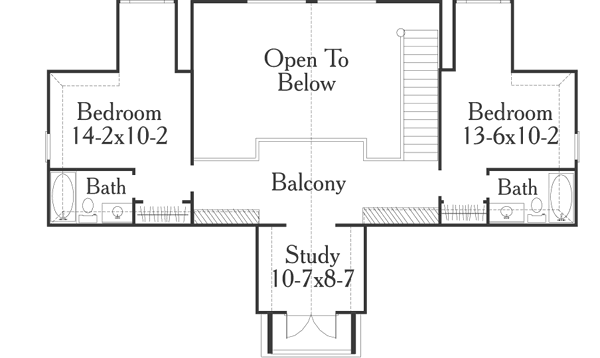

    Upper/Second Floor Plan: 47-160

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Cottage style home offers a very unique arrangement with only the essential rooms. Wide foyer opens into a two story greatroom. Vaulted ceiling allows balcony to overlook from loft above Spacious kitchen and dining room have generous views. Large owner's bedroom features tow closets, dual lavatories, separate shower and an oversized tub in the bath area. Upstairs bedrooms have private baths with interesting ceiling treatments. Garage plan #9717 Hickory Studio completes the look of this distinct home.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 1760

Upper floor: 862

Basement: 1760

Porches: 409

Total Finished Sq. Ft.: 2622
Beds/Baths

Bedrooms: 3

Full Baths: 3

Half Baths: 1
Levels

2 stories
Dimension

Width: 56' 0"

Depth: 46' 6"

Height: 23' 0"
Roof slope

10:12 (primary)

3:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Basement $350
  • Crawlspace $350
  • Slab Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1510

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $1310

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF + 5 $1685

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • CAD $2265

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Basement $350
  • Crawlspace $350
  • Slab Standard With Plan
