Traditional House Plan - 4 Bedrooms, 3 Bath, 2743 Sq Ft Plan 30-277

House Plans > Traditional Style > Plan 30-277

4 Bedroom , 3 Bath Traditional House Plan #30-277

SHARE ON
  • 30-277e.webp
Reverse
  • 30-277e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

CAD file available in AutoCad

4 Bedroom , 3 Bath Traditional House Plan #30-277

Key Specs:
  • img 2743 Sq. Ft.
  • img 4 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

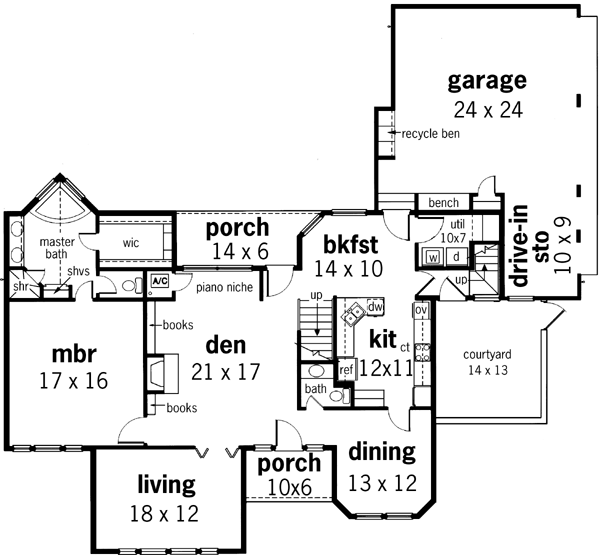

    Main Floor Plan: 30-277

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

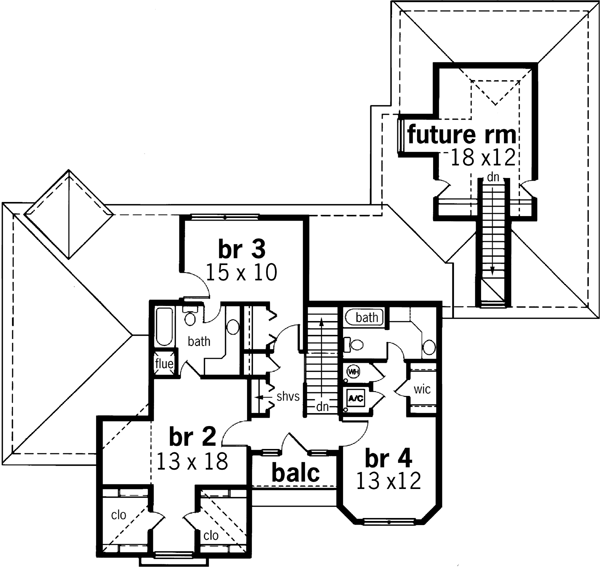

    Upper/Second Floor Plan: 30-277
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 30-277

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

An abundance of window walls brighten the interior of this classic formal home. A formal dining and living room flank each side of the leaded glass entryway. The den features a wood-burning fireplace, built-ins and a niche perfect for a baby grand piano. The ceiling of the plush master bath is vaulted to accommodate the windows above the quarter circle spa tub. The main stairwell allows passage to the upper level bedrooms while a rear stairwell leads to a future space above the garage. The garage has abundant storage space that can double as a golf cart port and there is even built-in space for recycle bins.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 1707

Upper floor: 1036

Bonus: 242

Porches: 196

Total Finished Sq. Ft.: 2743
Beds/Baths

Bedrooms: 4

Full Baths: 3

Half Baths: 1
Garage

Garage: 596

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 67' 0"

Depth: 64' 0"

Height: 32' 0"
Roof slope

12:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)

Foundation Options

  • Crawlspace Standard With Plan
  • Slab $175

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1280

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1390

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • PDF (recommended) $1200

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF + 5 $1405

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • CAD $2200

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Crawlspace Standard With Plan
  • Slab $175
