Traditional House Plan - 4 Bedrooms, 3 Bath, 4184 Sq Ft Plan 106-519

House Plans > Traditional Style > Plan 106-519

4 Bedroom , 3 Bath Traditional House Plan #106-519

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 3 Bath Traditional House Plan #106-519

Key Specs:

4184 Sq. Ft.
4 Bedrooms
3-1/2 Baths
2 Stories
2 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

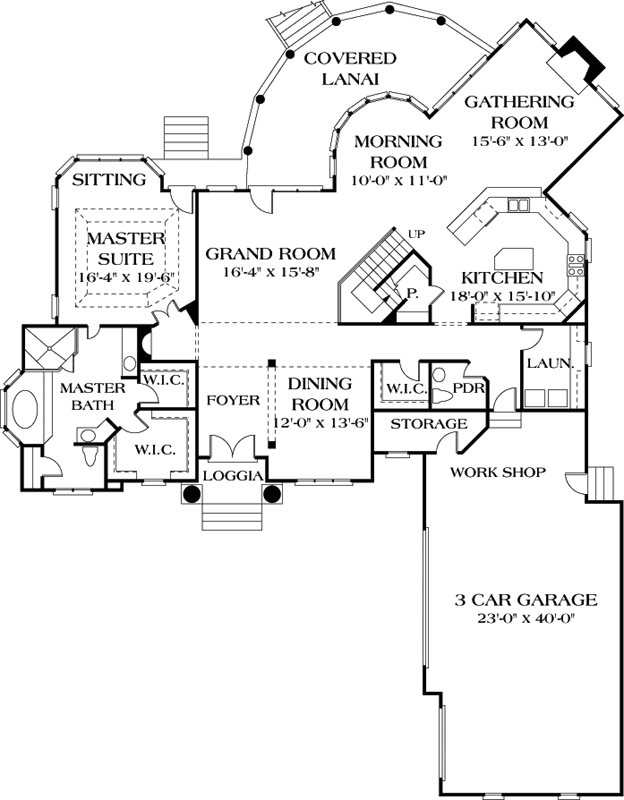

Main Floor

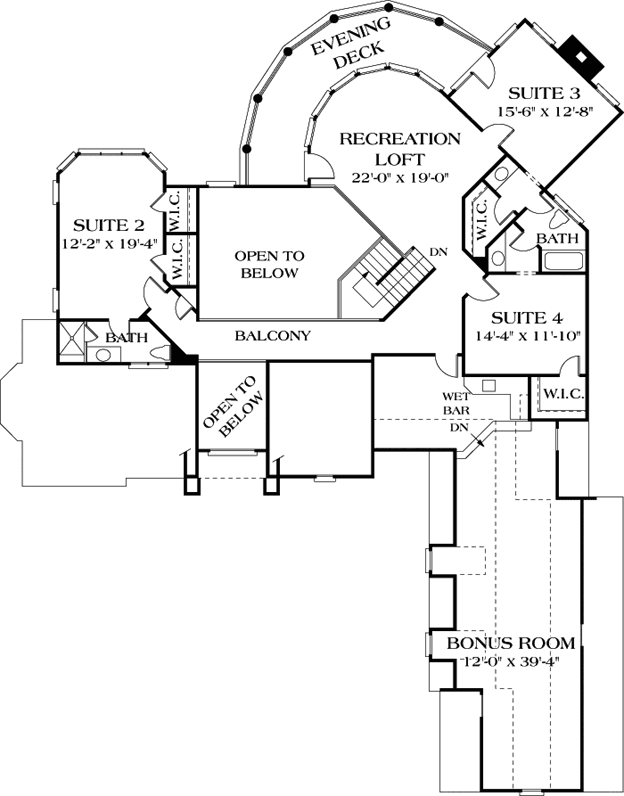

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This fresh and innovative design creates unbeatable ambiance. The angled gathering room, morning room and grand room create a perfect arrangement for entertaining. The two-story dining room is sure to please with its elegant pillars.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area	Main floor: 2547 Upper floor: 1637	Bonus: 802 Total Finished Sq. Ft.: 4184
Beds/Baths	Bedrooms: 4 Full Baths: 3	Half Baths: 1
Garage	Garage: 1051 Garage Stalls: 2
Levels	2 stories
Dimension	Width: 74' 0" Depth: 95' 6"
Walls (exterior)	2"x4"
Ceiling heights	10' (Main) 9' (Upper)

Foundation Options

Crawlspace Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Material List

$75 $60

Mirror Reverse

$50 $40

Note : If you order a Material List, as well as an alternate foundation, Exterior wall change, your Material List may not reflect your alternate options.

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a back view
Bedrooms & Baths
Main floor Master Master sitting area/Nursery Teen suite/Jack & Jill bath
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Bonus room Family room Hobby / rec-room Great room Main Floor laundry Open concept floor plan Formal dining room Unfinished/future space
Exterior Features
Covered rear porch Sun-deck
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Workshop Oversized garage (3+) Side-entry garage

Additional Services

Other house plans by this Designer

Plan 106-661

Plan 106-654

Plan 106-512

Plan 106-440

Plan 106-737

Plan 106-633

See All

House Plan Features

Lot Characteristics
Suited for a back view
Bedrooms & Baths
Main floor Master Master sitting area/Nursery Teen suite/Jack & Jill bath
Kitchen
Island Walk-in pantry Eating bar Nook / breakfast
Interior Features
Bonus room Family room Hobby / rec-room Great room Main Floor laundry Open concept floor plan Formal dining room Unfinished/future space
Exterior Features
Covered rear porch Sun-deck
Unique Features
Vaulted/Volume/Dramatic ceilings Photos Available
Garage
Workshop Oversized garage (3+) Side-entry garage

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
