5 Bedroom , 4 Bath Traditional House Plan #106-517

Key Specs:

5463 Sq. Ft.
5 Bedrooms
4-1/2 Baths
2 Stories
3 Garages

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

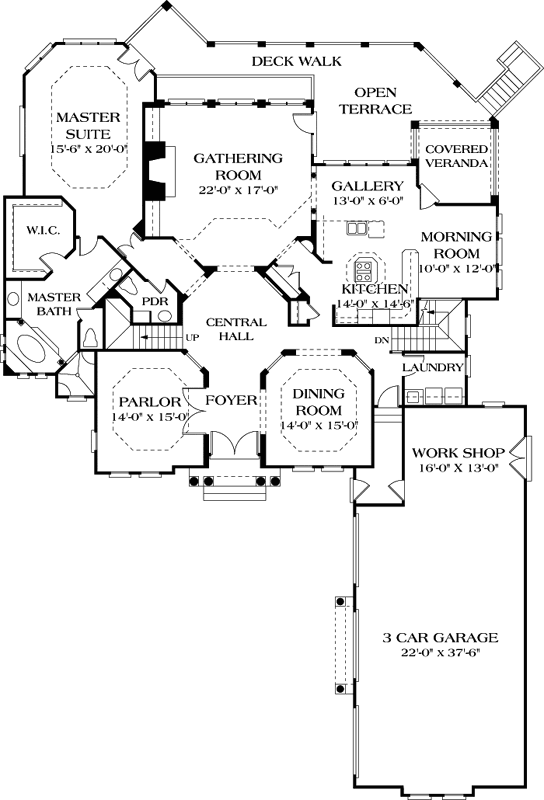

Main Floor

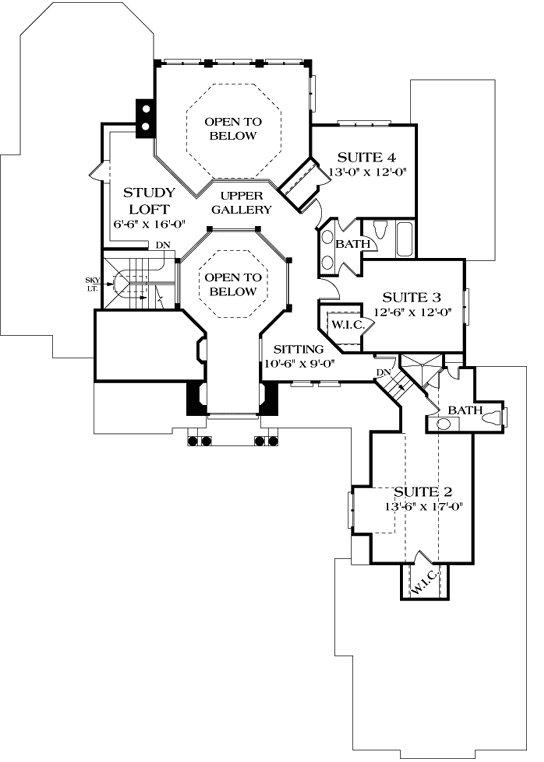

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

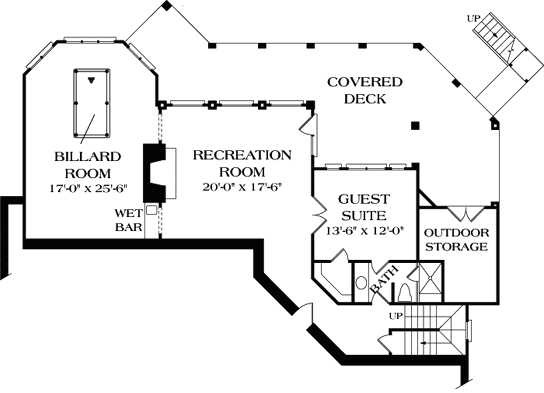

Lower Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This majestic two-story home frames the columned entryway with a balcony above. The two-story foyer and central area provide a grand entrance to the living spaces beyond. In the rear of the home, the terrace, deck and veranda lead to an opportunity for a spectacular view.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area	Main floor: 2716 Upper floor: 1457	Basement: 1290 Total Finished Sq. Ft.: 5463
Beds/Baths	Bedrooms: 5 Full Baths: 4	Half Baths: 1
Garage	Garage: 1216 Garage Stalls: 3
Levels	2 stories
Dimension	Width: 69' 6" Depth: 101' 0"
Walls (exterior)	2"x4"
Ceiling heights	10' (Main) 9' (Upper)

Foundation Options

Walk-out basement Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Mirror Reverse

$50 $40
