Tudor House Plan - 5 Bedrooms, 3 Bath, 3419 Sq Ft Plan 1-186

House Plans > Tudor Style > Plan 1-186

5 Bedroom , 3 Bath Tudor House Plan #1-186

SHARE ON
  • 1-186e.webp
Reverse
  • 1-186e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

5 Bedroom , 3 Bath Tudor House Plan #1-186

Key Specs:
  • img 3419 Sq. Ft.
  • img 5 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 3 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

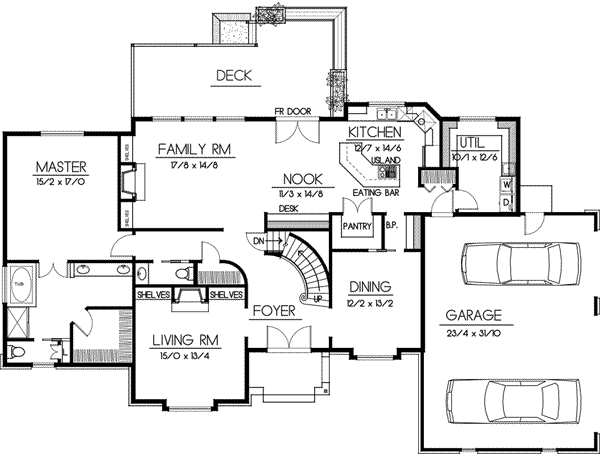

    Main Floor Plan: 1-186

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

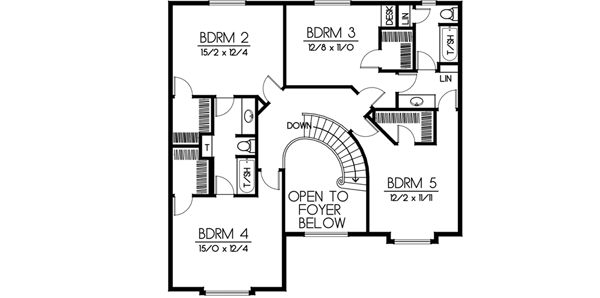

    Upper/Second Floor Plan: 1-186
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 1-186

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area

Main floor: 2167

Upper floor: 1252

Basement: 2167

Total Finished Sq. Ft.: 3419
Beds/Baths

Bedrooms: 5

Full Baths: 3

Half Baths: 1
Garage

Garage: 764

Garage Stalls: 3
Levels

2 stories
Dimension

Width: 81' 0"

Depth: 47' 6"

Height: 30' 6"
Roof slope

8:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Basement Standard With Plan
  • Daylight basement $350
  • Crawlspace $150
  • Slab $150

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1395

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $1245

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF + 5 $1495

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • Unlimited Build - CAD $2245

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Basement Standard With Plan
  • Daylight basement $350
  • Crawlspace $150
  • Slab $150
Monster Material List
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Additional Services

House Plan Features

Additional Services
