Victorian House Plan - 4 Bedrooms, 3 Bath, 3674 Sq Ft Plan 58-225

House Plans > Victorian Style > Plan 58-225

4 Bedroom , 3 Bath Victorian House Plan #58-225

SHARE ON

Reverse

SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 3 Bath Victorian House Plan #58-225

Key Specs:

3674 Sq. Ft.
4 Bedrooms
3-1/2 Baths
2 Stories

Floor Plans What's included?

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

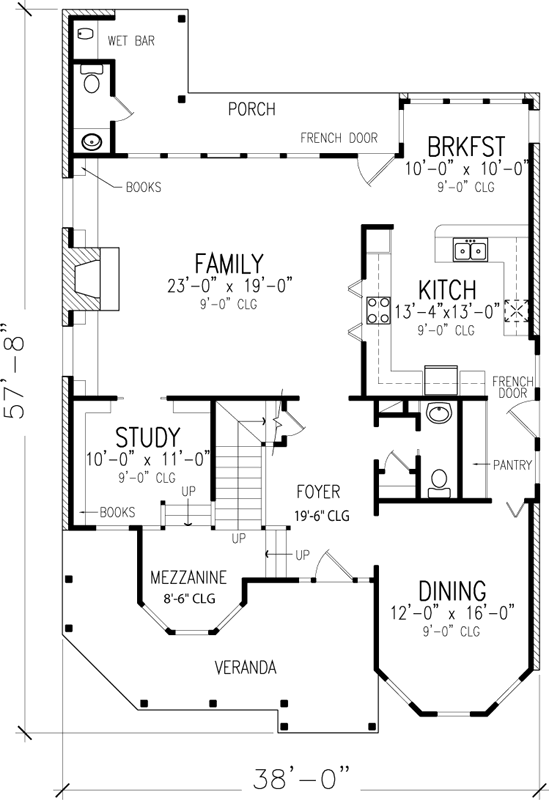

Main Floor

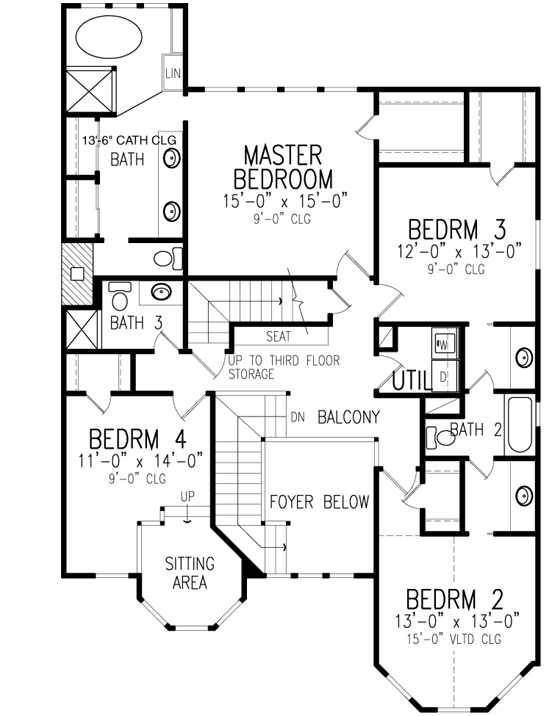

Upper/Second Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

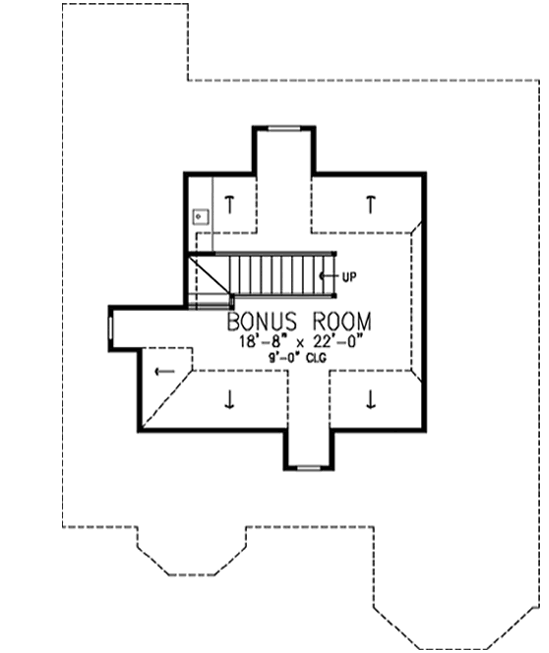

Third Floor

Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

Reverse

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This wonderful home offers the best of both worlds: it offers lovely entertaining areas without sacrificing lazy family living.

An airy atmosphere is created with the open spaces and arrangement of windows.

The sleeping areas provide the ultimate in comfort and practicality.

This floor plan is found in our Victorian house plans section

Full Specs and Features

Total Living Area	Main floor: 1484 Upper floor: 2190	Third floor: 515 Total Finished Sq. Ft.: 3674
Beds/Baths	Bedrooms: 4 Full Baths: 3	Half Baths: 2
Levels	2 stories
Dimension	Width: 38' 0" Depth: 57' 8"	Height: 35' 0"
Roof slope	12:12 (primary)
Walls (exterior)	2"x4"
Ceiling heights	9' (Main) 9' (Upper)

Foundation Options

Slab Standard With Plan

Plan Purchase Options

What's included in this plan?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Mirror Reverse

$50 $40

Extra Sets

$40 $32 /each

Note : If you order a Material List, as well as an alternate foundation, Exterior wall change, your Material List may not reflect your alternate options.

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Lot Characteristics
Suited for a back view Suited for a narrow lot
Bedrooms & Baths
Upstairs Master Teen suite/Jack & Jill bath
Kitchen
Butler's pantry Eating bar Nook / breakfast
Interior Features
Bonus room Family room Upstairs laundry Formal dining room Den / office / computer
Exterior Features
Covered front porch Covered rear porch Wrap-around porch

Additional Services

Other house plans by this Designer

Plan 58-163

Plan 58-176

Plan 58-230

Plan 58-375

Plan 58-266

Plan 58-168

See All

House Plan Features

Lot Characteristics
Suited for a back view Suited for a narrow lot
Bedrooms & Baths
Upstairs Master Teen suite/Jack & Jill bath
Kitchen
Butler's pantry Eating bar Nook / breakfast
Interior Features
Bonus room Family room Upstairs laundry Formal dining room Den / office / computer
Exterior Features
Covered front porch Covered rear porch Wrap-around porch

Elevations	Floor Plans	Foundation/Basement Plan
Material labels	All post and beam locations	All post & beam locations
Floor-to-floor heights	Door and window sizes	Door & window sizes
Roof slope indicators	Complete and accurate dimensions	Complete & accurate dimensions
Attic ventilation notes	Room labels and interior room sizes	All foundation wall & footing sizes
	Electrical layout (lights, plugs & switches only) except where otherwise noted.	Electrical layout (lights, plugs & switches only) except where otherwise noted.
	Code-related notes	Building section markers
	Building section markers	Floor & deck joist type, spacing & direction
	Floor joist type, spacing and direction	Mechanical equipment location

Building Sections	Typical Wall Sections	Roof Plan
Floor joist type and spacing	Labels indicating wall construction	All roof beam and header locations
Floor-to-floor heights	Foundation wall thickness and minimum reinforcing	Building section markers
Non-typical plate heights indicated	House insulation type and rating	Code-related notes
Beam connections and locations		All necessary notes pertaining to the structural system

Misc. Notes & Details	What's NOT Included
Miscellaneous house framing details	Locations of actual ductwork for heating and air conditioning
Stairway details	Drawings showing the actual plumbing pipe sizes and locations
General notes covering code requirements for residential construction	Electrical wiring and panel diagrams
	Professional stamps
	Location-specific engineering
	Site plan & septic design
	Unlimited license to build more than once (unless otherwise noted).
